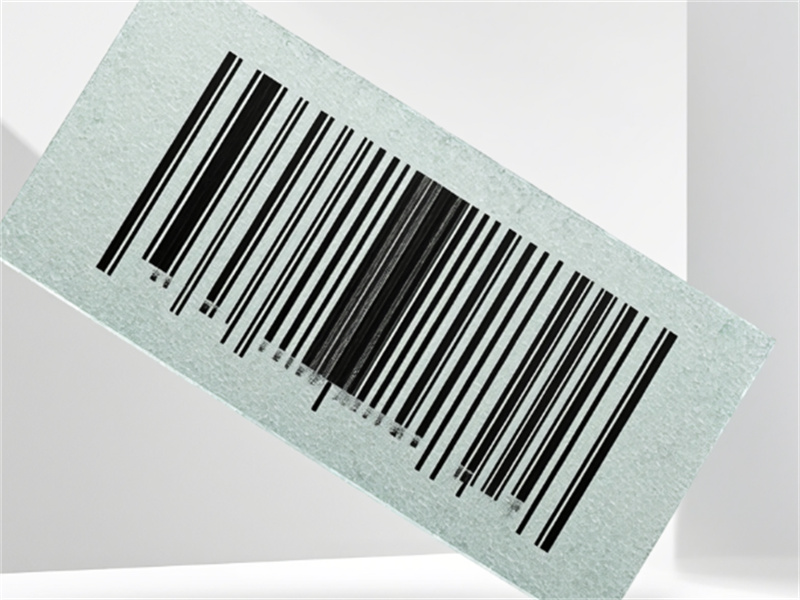

Reading Barcodes on Frosted PV Glass: Technical Challenges and Practical Solutions

Frosted or matte glass used in photovoltaic modules presents significant barcode-reading challenges because of its surface properties:

1. Surface Roughness and Diffuse Reflection

Sandblasting or acid etching creates microscopic surface irregularities that scatter incoming light. Although light transmittance can reach 85%-92%, scattering may blur the barcode image and significantly reduce contrast.

The Conflict Between Light Transmission and Reflection

Glass transmits light, but a rough surface can also cause repeated internal reflections that further interfere with barcode imaging. If the barcode is located on the back of the glass, the light must pass through the material, and refraction may distort the captured image.

The Combined Effects of Contamination and Wear

Oil, dust, and other contaminants can accumulate on frosted glass during production. Surface wear over time can further reduce barcode clarity.

2. Technical Challenges in Barcode Reading

Interference from Reflected Light

Conventional scanner illumination, including red light and laser light, can create diffuse reflections on frosted glass. The resulting loss of image contrast makes it difficult to distinguish bars from spaces.

Challenges Associated with Different Barcode Media

Printed Barcodes: UV ink printed on the glass may spread across the rough surface, producing blurred barcode edges.

Etched Barcodes: The physical relief structure resists wear, but the limited difference in reflectivity requires a high-precision sensor.

Back-Side Barcodes: Refraction occurs as light passes through the glass, distorting the barcode shape and requiring algorithmic correction.

Demanding Industrial Requirements

Photovoltaic production lines may require high-speed reading at 10-20 reads per second and a read rate above 99.9%, placing strict demands on device performance and algorithm efficiency.

3. Technical Solutions for Reliable Barcode Reading

3.1 Optimize Barcode Type and Design

2D Barcodes such as Data Matrix and QR Code

Advantages: High error tolerance, with support for recovering from up to 30% data loss, and high information density for compact symbols such as 5 mm x 5 mm codes.

Best Fit: Applications with limited surface area that must store serial numbers, production information, or similar data.

High-Contrast Barcodes

Advantages: Dark inks such as black or dark blue can be printed on a light background, or an etching process can create physical contrast through surface relief.

Best Fit: Glass surfaces with severe glare where stronger visual contrast is required.

Distortion-Compensated Barcodes

Advantages: Software can pre-distort the barcode pattern to offset refraction through the glass, similar to reverse compensation for a fisheye lens.

Best Fit: Barcodes placed on the back of the glass where transmission through the material deforms the image.

3.2 Select the Right Scanning Equipment

Recommended Options

Industrial Area-Imaging Readers

Datalogic Matrix Series: High-resolution sensors designed for challenging lighting conditions.

Cognex ID Readers: Built-in AI algorithms that can adjust parameters dynamically.

CCD/CMOS Imaging Systems: Support multi-angle image capture and use software algorithms to process blurred images.

Limitations of Laser Scanners

Laser scanners depend on differences in reflected light between bars and spaces. On frosted glass, diffuse reflection can interrupt the signal, so this technology is suitable only when the glass surface is exceptionally even.

Specialized Lighting Configurations

Polarized Lighting: Filters specular reflections from the glass surface and makes the barcode pattern more visible.

Backlighting: When the barcode is located on the back of the glass, an LED backlight panel can improve contrast.

3.3 Optimize Scanner Parameters and Algorithms

Hardware Settings

Exposure Time: Increase exposure time to capture more diffusely reflected light.

Lighting Angle: Use illumination at a 45-degree angle to reduce glare interference.

Software Algorithm Enhancements

Image Preprocessing: Apply noise reduction, sharpening, and contrast enhancement.

Distortion Correction: Use perspective transformation to restore the barcode geometry.

Adaptive Thresholding: Compensate for uneven brightness across the frosted glass surface.

3.4 Implementation Guidelines for Industrial Applications

Production Line Integration

Fixed Installation: Maintain a constant distance of 10-20 cm between the reader and the frosted glass to prevent focus variation.

Mechanical Positioning: Keep the barcode near the center of the reader's field of view.

Interference Prevention

Dust Protection: Use a protective cover to prevent dust from accumulating on the glass surface.

Automatic Cleaning: Integrate an air blow-off system or soft brush to remove oil and debris at regular intervals.

Real-Time Monitoring and Feedback

Use industrial monitoring software, such as FactoryLink, to record read rates, automatically flag failed reads, and trigger manual inspection.
