S332 Ip65 Wireless Industrial Dpm Handheld Barcode Scanner for the traceability management of manufacturing

1.industrial barcode scanner, 2d barcode scanner wireless, wireless qr code scanner, handheld qr code scanner, 2d wireless barcode scanner, wireless 2d barcode scanner, barcode scanner industrial, wireless handheld barcode scanner, dpm industrial barcode scanner

2.In today's highly digitized industrial landscape, precise and efficient data traceability is critical to enhancing management efficiency and ensuring product quality. With its rugged design and superior decoding performance, the industrial handheld scanner has become the core tool for automated identification and data capture across a wide range of industries.

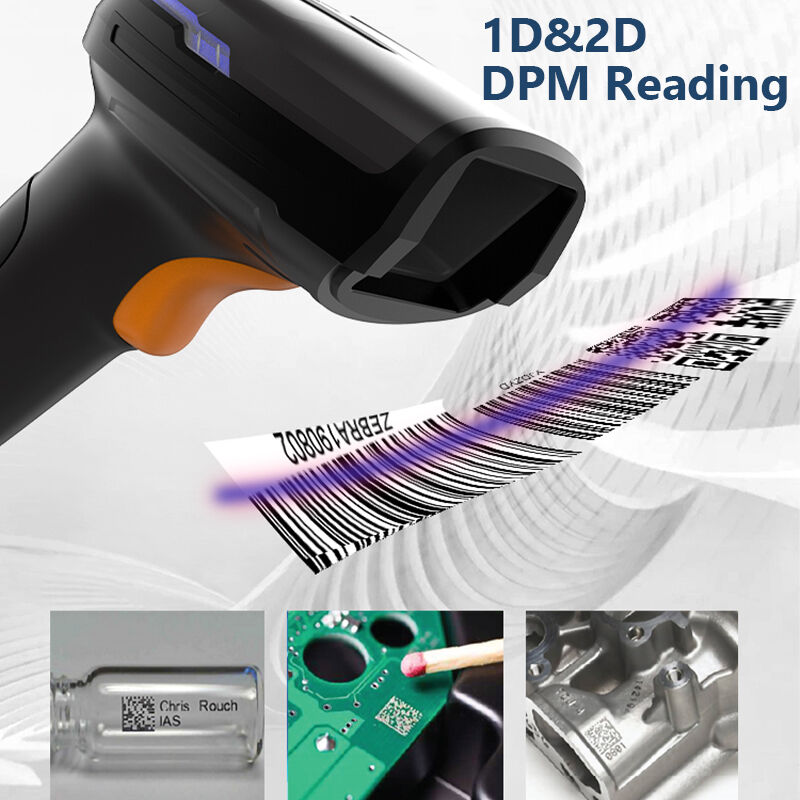

One of the most prominent advantages of this scanner is its exceptional DPM (Direct Part Marking) decoding capability. In high-end manufacturing, many components are marked with DPM codes via methods like laser etching or dot peening due to material or size constraints. Our scanner effortlessly handles these challenges, smoothly reading all types of tiny and complex DPM barcodes to ensure every production stage is accurately traced from the source.

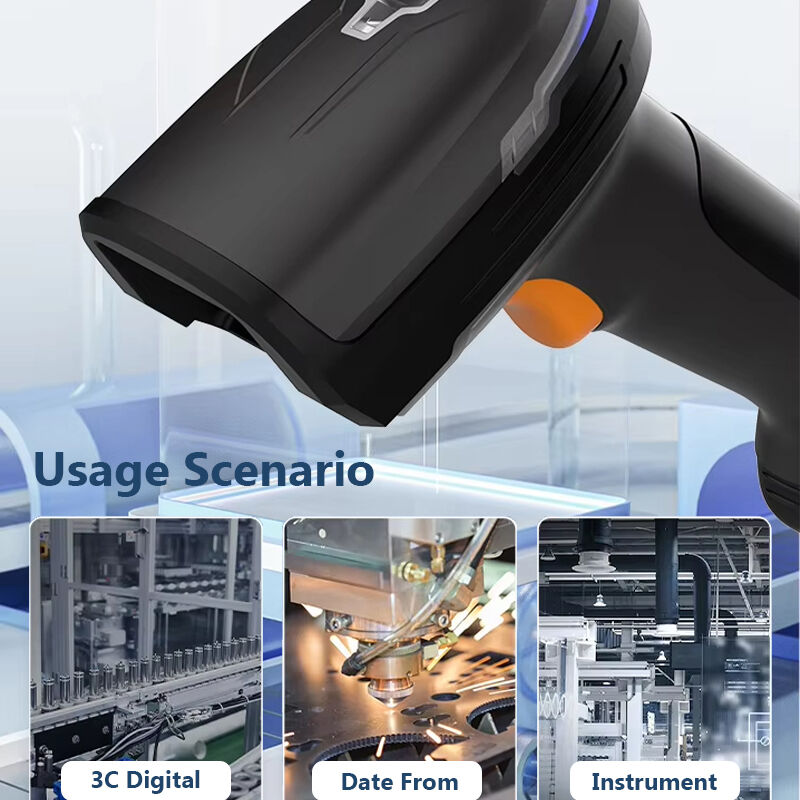

This scanner demonstrates unparalleled adaptability and reliability, no matter the application scenario:

•Mobile Phone Assembly & Medical Device Manufacturing: In these fields that demand extreme precision, the scanner accurately reads DPM codes and high-density barcodes on PCB circuit boards, metal casings, and tiny components. Complemented by its bright LED illumination, it ensures clear imaging even on poorly lit production lines. This guarantees full traceability from material sourcing, assembly, and quality inspection to finished goods warehousing, meeting strict industry regulatory standards.

•Photovoltaic (PV) Product Manufacturing: The scanner delivers outstanding performance when faced with low-contrast, laminated, or smudged barcodes commonly found in PV module production. It reliably reads serial numbers on silicon wafers, solar cells, and backsheets, ensuring quality monitoring throughout the entire lifecycle of PV products, from production to final deployment.

•Retail, Wholesale, & Logistics Warehousing: In these fast-paced, high-intensity environments, efficiency is paramount. Our scanner supports nearly all universal 1D and 2D barcodes, from EAN/UPC codes on product packaging to QR codes on shipping labels. Its powerful algorithm also delivers excellent performance in scenarios involving low-contrast, wrinkled, smudged, distorted, or even damaged printed barcodes. This dramatically improves the efficiency and accuracy of goods receiving/shipping, inventory counting, order picking, and logistics tracking, significantly reducing manual errors.

• Core Specifications

Pixels:1280 Pixels (H) x 1080 Pixels (V), 1.3 Million Pixels C-MOS

Illumination:Red, white, and blue three-color supplemental lighting, intelligent light source

Reading Precision:1D: ≥ 3 mil, 2D: ≥ 5 mil

Dimensions:Main Unit: 181 x 136 x 77 mm, Base: 87 x 220 x 82 mm

Weight (Excl. Cable):Wireless Version (Incl. Battery): ≈ 320g, Base: ≈ 250g

Communication Distance: 100m (Open space)

Protection Rating: IP65

High-Performance Wireless Handheld Industrial Scanner: Superior Performance, Robust Durability

Our industrial-grade handheld barcode scanner, meticulously engineered to meet the rigorous demands of harsh industrial environments. This high-performance device integrates advanced scanning technology, robust construction, and flexible connectivity options, all designed to enhance your operational efficiency and data acquisition accuracy.

Exceptional Scanning Performance

Equipped with a 1.3-megapixel C-MOS sensor, boasting a resolution of up to 1280 (H) x 1080 (V) pixels, this scanner ensures clear and precise reading of all barcode types. Its unique red, white, and blue three-color fill light with intelligent light source design provides optimal illumination even in low-light or complex conditions, guaranteeing reliable scanning. Whether for close-range or extended-range applications, its scanning distances of 60mm-300mm (UPCA-13 mil 100%) and 40mm-130mm (Code 39-3 mil) effortlessly handle diverse requirements.

The device supports both button scanning and induction scanning modes, offering flexible and convenient operation. It is capable of recognizing a wide array of 1D and 2D symbologies, including but not limited to:

1D: UPC A, UPC E, EAN 8, EAN 13, Code 128, Code 39, Code 93, Codabar, Plessey, MSI, Interleaved 2 of 5

2D: Data Matrix, QR Code, Micro QR, PDF417, MicroPDF417, Aztec, MaxiCode

With a reading precision of ≥3 mil for 1D and ≥5 mil for 2D, coupled with optimized typical depth of field for various barcode specifications (e.g., QR (5mil) 30mm~90mm, EAN/UPC (13mil) 60mm~300mm), efficient readability is ensured across all application scenarios. Furthermore, a field of view of 28° (H) and 22° (V) and a print contrast ratio greater than 20% (UPC/EAN 100%) further enhance its recognition capabilities in challenging environments.

Robust Industrial-Grade Design

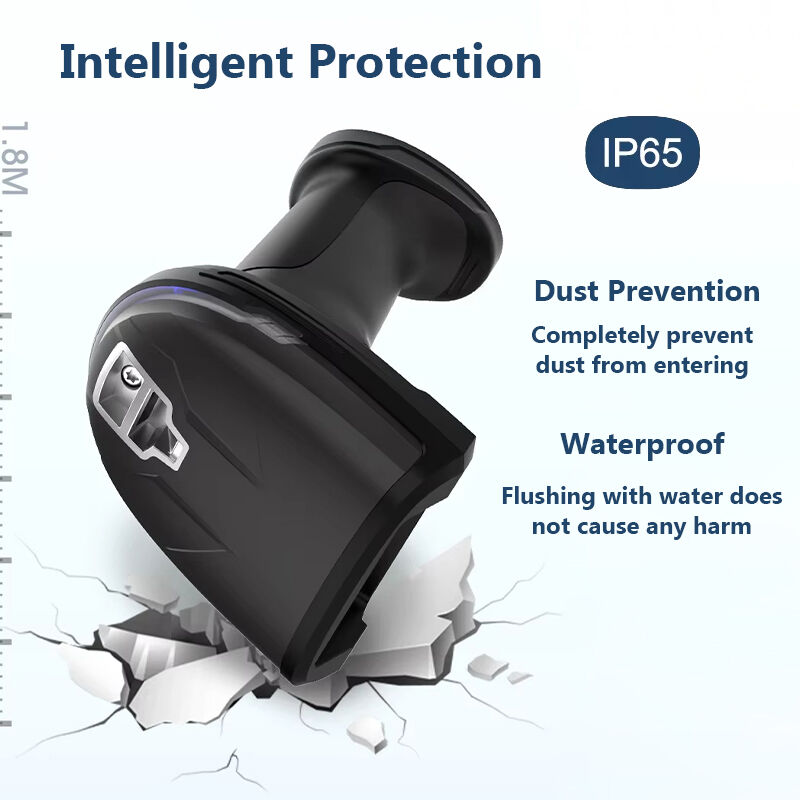

Built specifically for industrial settings, this scanner demonstrates exceptional durability. It operates stably within a wide temperature range of -20°C to +50°C and can be stored from -40°C to +70°C, supporting relative humidity from 5% to 95% (non-condensing), ensuring outstanding performance in extreme climatic conditions. High ESD protection of ±12 kV (air discharge) and ±8 kV (direct discharge) effectively guards against electrostatic interference, safeguarding the device. Concurrently, its 1.8-meter drop height design allows it to withstand accidental drops during daily operations, significantly extending the product's lifespan.

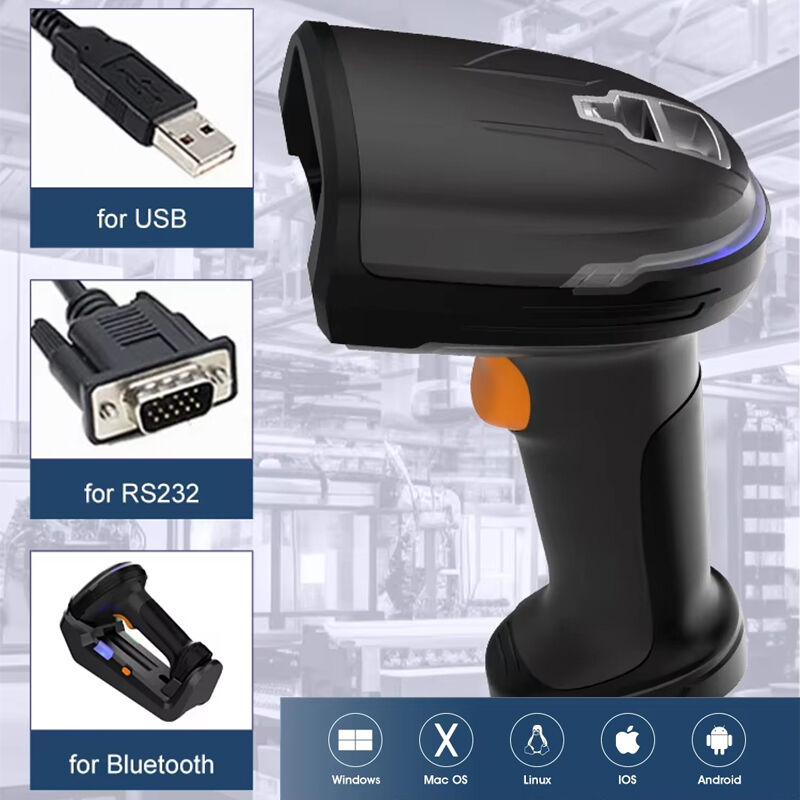

For communication interfaces, the wireless dual-mode supports Bluetooth HID/SPP/BLE and 2.4G, providing a communication distance of up to 100 meters in open spaces, offering users significant freedom of movement.

With its superior performance, robust design, and adaptability to demanding environments, this industrial handheld barcode scanner is the ideal choice for enhancing your industrial data acquisition efficiency and reliability.

1.Stronger R&D

We are always keeping innovation in scanning hardware according to markets trend. It is ok to research and development based on your ideas and advice.

2.Professional OEM/ODM Support

We offer comprehensive manufacturing partnerships, transforming your concepts into market-ready products with industry-leading quality and efficiency.

3.Best Quality Support

Strictest quality control,Obtain CE, FCC, RoHS and other certificates

4.Excellent After-sales Service

Enjoy total peace of mind with our full-lifecycle support, from expert guidance to free software updates.

Q1. What kind of company is Suzhou Langhuike?

A:Suzhou Langhuike is a world-leading IoT solutions provider with nearly 25 years of expertise in 1D/2D barcode recognition and UHF RFID core technologies.

Q2. What products do you offer?

A:Our portfolio includes a full range of scanning products: barcode scanners (embedded, fixed-mount, handheld, desktop), OEM engines, PDAs, and Barcode Printers.

Q3. What is your R&D capability? Do you support custom development?

A:We have strong R&D capabilities and are always innovating scanning hardware according to market trends. We support research and development based on your ideas and advice.

Q4. Do you provide OEM/ODM services?

A:Yes, we offer comprehensive manufacturing partnerships, transforming your concepts into market-ready products with industry-leading quality and efficiency.

Q5. What about the quality of your products? Are they certified?

A:We implement the strictest quality control and have obtained CE, FCC, RoHS, and other certifications to ensure excellent product quality.

Q6. What after-sales services do you provide?

A:We offer full-lifecycle support, including expert guidance and free software updates, providing you with complete peace of mind.
