Compact Smallest and Lightweight All In One 2d Qr Code Barcode Scanner Engine Module N1

1.barcode scanner module, barcode scan module, qr barcode scanner module, qr code scanner module, 2d scanner module, 2d barcode, scanner module, barcode module, android barcode scanner module, usb barcode scanner module, 2d barcode module, barcode scan engine module, barcode reader module, barcode scanner reader module, usb scanner barcode module

2.Data Collection in Mobile and Wearable Devices

In the era of mobile internet, the demand for portable data collection is growing daily. Ultra-compact scanning engine modules can be cleverly integrated into various mobile and wearable devices to achieve "on-the-go scanning functionality." More innovative applications include ring scanners and smart gloves.

Contactless Interaction for Self-Service Terminals

With the popularization of self-service models, the ultra-compact scanning engine module has become a core component for achieving contactless interaction in various self-service terminals. In vending machines, it allows users to pay by scanning product barcodes or QR codes. On self-service ticketing machines, it can quickly verify electronic ticket QR codes, simplifying the ticket collection process.

Precise Traceability and Management in Healthcare

The healthcare sector has extremely high requirements for data accuracy and traceability. The ultra-compact scanning engine module plays a crucial role here. It is embedded in mobile nursing PDAs, allowing nurses to scan barcodes on patient wristbands, medication packaging, or IV bags to verify patient information, medication dosage, and batch numbers, thereby effectively preventing medical errors and ensuring patient safety. In precision medical instruments such as blood analyzers and laboratory automation equipment, it is used to automatically identify tube labels, enabling precise sample management and traceability. Furthermore, in medical device management and the pharmaceutical supply chain, it is also used to track the entire lifecycle of products from production to use, safeguarding medical quality and safety.

Efficiency Improvement in Smart Transportation and Logistics

In the fields of smart transportation and logistics, the ultra-compact scanning engine module is a key technology for improving traffic efficiency and package flow speed. In bus/subway turnstiles, it can quickly recognize mobile payment QR codes or transit card QR codes to achieve seamless passage. At airport check-in counters, it is used to scan barcodes on boarding passes or passports, speeding up the passenger check-in process. For handheld courier terminals, its embedded design enables couriers to efficiently scan package information and enter delivery confirmation data.

Intelligent Operations in Retail and Supermarkets

The retail industry is undergoing a digital transformation, and the ultra-compact scanning engine module helps it achieve more intelligent operations. In price checker machines, customers can self-scan product barcodes to check prices and details. In embedded POS systems, it provides fast and accurate product checkout functionality.

3.Core Specifications

Image Sensor: 640 * 480 CMOS

Illumination: 5000K white LED, 625nm red LED

Resolution: ≥3mil

Dimensions (L×W×H): 21.5(W)×9.0(D)×7.0(H)mm (max.)

Weight: 1.2g

Interface: TTL-232, USB

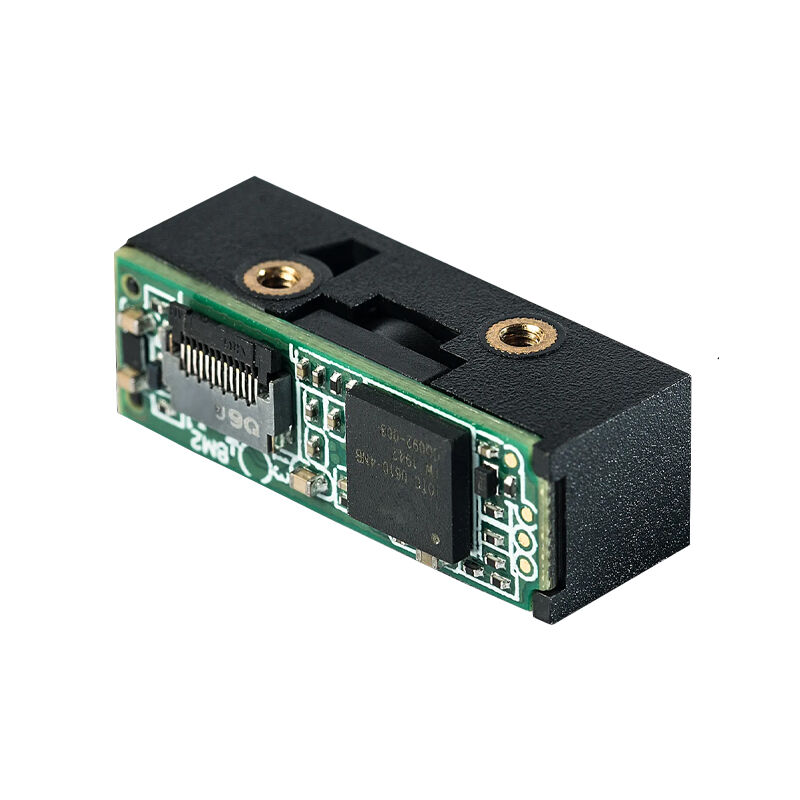

Ultra-Compact Design

The module boasts an extremely small physical footprint, measuring only 21.5(W)×9.0(D)×7.0(H)mm and weighing a mere 1.2 grams. This miniaturized design allows for easy integration into a wide range of products with strict space requirements, offering significant flexibility in product design.

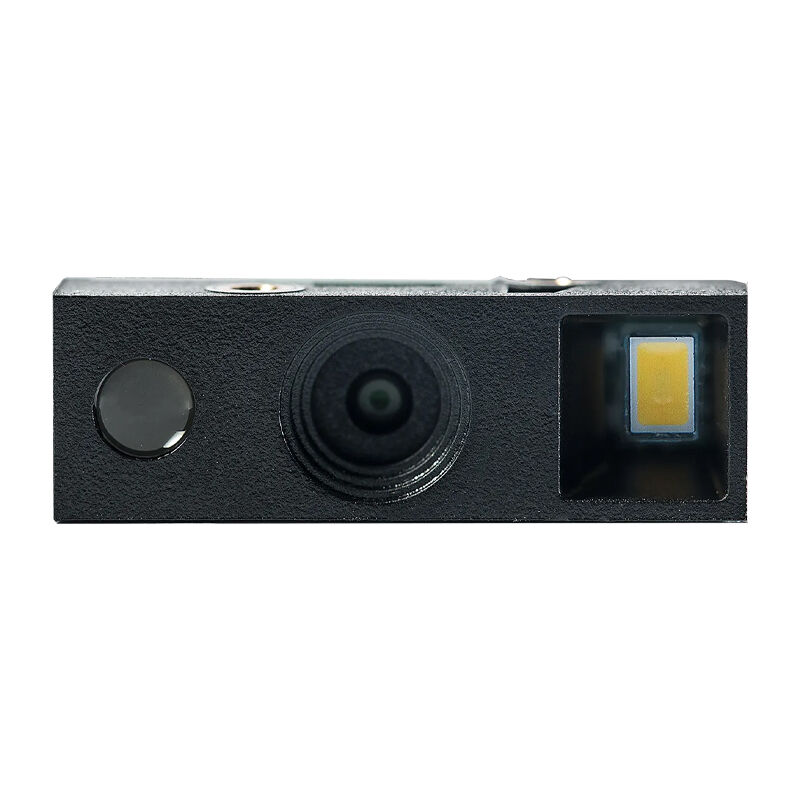

High-Performance Image Sensor and Illumination

Equipped with a 640 x 480 CMOS image sensor, the module ensures efficient and accurate data capture. For optimal performance across various lighting conditions, it utilizes 5000K white LED and 625nm red LED illumination. This combination provides clear images even in low-light or complex environments, enabling fast and reliable scanning.

Superior Decoding Capabilities

This scan engine module offers superior barcode decoding capabilities, supporting a wide array of 1D and 2D barcode types. For 2D barcodes, it can recognize PDF417, QR Code, Micro QR, Data Matrix, and Aztec. In terms of 1D barcodes, it supports Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GSI Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessy, and MSI-Plessey. Its resolution of ≥3mil ensures precise reading of high-density barcodes.

Wide Depth of Field and Scan Angle

The module delivers excellent depth of field performance. For instance, it can read EAN-13 (13mil) barcodes from 60mm-350mm; Code 39 (5mil) barcodes from 40mm-150mm; PDF417 (6.7mil) barcodes from 50mm-125mm; Data Matrix (10mil) barcodes from 45mm-120mm; and QR Code (15mil) barcodes from 30mm-170mm. Furthermore, it supports a 360° roll, ±60° pitch, and ±60° skew scan angle, along with a 42° horizontal and 31.5° vertical field of view. These features significantly enhance scanning flexibility and user experience, reducing the difficulty of alignment.

Low Power Consumption Design

Operating at 3.3VDC, the module's typical operating current is only 91.08mA, with an idle current of 11.8mA, and a sleep mode current of less than 0.3mA. This low power consumption makes it highly suitable for battery-powered mobile devices, helping to extend device battery life.

Robust Environmental Adaptability

Designed for stable operation in demanding environments, the module has an operating temperature range from -20°C to 60°C and a storage temperature range from -40°C to 70°C. It can also function normally in 5% to 95% (non-condensing) humidity and ambient light conditions from 0 to 100,000lux, ensuring reliability across various complex environments.

Multiple Interface Options

Providing both TTL-232 and USB interface options, the module offers convenient and flexible integration for users based on different main control platforms and application requirements.
