Place of Origin: |
Jiangsu China |
Brand Name: |
Hawkgaze |
Model Number: |
Z4300 |
Minimum Order Quantity: |
1 piece |
Price: |
235 USD |
Packaging Details: |
carton |
Delivery Time: |
Up to 50 pcs: 10 days; Up to 500 pcs: 30 days |
Payment Terms: |
T/T,L/C,credit card |
Supply Ability: |
1000 pieces/month |
1.thermal printers, label printer, label thermal printer, thermal printer for label, thermal shipping label printer, thermal label printer, shipping label printer, thermal barcode printer, label barcode printer, thermal transfer printer, thermal sticker printer, barcode label printing machine, packaging labels printer, barcode printer machine, thermal printer for clothing, label printer thermal trasfer
2.Logistics and Warehousing
In the logistics and warehousing industry, desktop label printers are crucial tools for improving efficiency and accuracy. They are primarily used for printing:
•Shipping Labels and Transport Labels: Used for parcel identification, tracking, and sorting, such as electronic waybills, address labels, and logistics labels.
•Inventory Management Labels: Used to identify goods, shelves, and pallets in warehouses, facilitating inbound, outbound, inventory counting, and location tracking.
•Asset Management Labels: Used for coding and tracking fixed assets.
Retail Industry
The retail industry is another significant application area for desktop label printers, contributing to improved merchandise management and customer experience:
•Product Price Labels: Printing product names, prices, barcodes, and other information, facilitating checkout and inventory management.
•Shelf Labels: Identifying product categories, numbers, and promotional information on shelves to guide customers.
•Promotional Labels: Printing promotional information such as "New Arrivals" or "Special Offer" to attract customers.
•Jewelry Labels: Printing small and delicate information labels for jewelry.
Manufacturing Industry
Manufacturing utilizes desktop label printers for identification and traceability during the production process:
•Product Identification Labels: Printing product models, batches, production dates, serial numbers, and other information for quality control and traceability.
•Component Labels: Identifying components on the production line to ensure assembly accuracy.
•Asset and Tool Identification: Marking equipment, tools, and infrastructure to aid in maintenance schedules and theft prevention.
Healthcare and Pharmaceuticals
In the healthcare and pharmaceutical sectors, the accuracy and clarity of labels are paramount:
•Medication Labels: Printing medication names, dosages, expiry dates, usage instructions, and other information to enhance patient safety.
•Specimen Labels: Identifying medical specimens (e.g., blood, urine) to ensure accuracy in testing processes.
•Medical Record and Archive Labels: Classifying and managing medical records and archives.
Office and Administration
Desktop label printers also play a role in daily office operations:
•File Archiving Labels: Identifying files, folders, and archive boxes for easy retrieval and management.
•Envelope and Package Address Labels: Improving mail processing efficiency.
•Asset Management Labels: Identifying office equipment.
3.Core Specifications
Resolution: 12 dots/mm (300 DPI)
Printing Mode: Thermal Transfer / Direct Thermal
Maximum Print Speed: 127 mm (5") / second
Maximum Print Width: 105.6 mm (4.16")
Maximum Print Length: 1,016 mm (40")
Dimensions: 204 mm (W) x 164 mm (H) x 280 mm (L)
Weight: 2.5 kg
CPU: 32-bit high-performance processor
Memory: 8 MB Flash memory, 16 MB SDRAM
Powered by a 32-bit high-performance processor with 8 MB Flash memory and 16 MB SDRAM, this printer ensures rapid data processing. It offers a maximum print speed of 127 mm (5 inches) per second and a crisp resolution of 12 dots/mm (300 DPI), guaranteeing clear text and precise barcodes on every label.
Supporting both thermal transfer and direct thermal printing modes, it provides flexibility for different applications and consumable choices. It handles a maximum print width of 105.6 mm (4.16 inches) and an impressive print length of up to 1,016 mm (40 inches), accommodating a wide range of label sizes.
Seamless Integration & Broad Compatibility
Equipped with a robust TSPL-EZD command set, the printer is compatible with EPL, ZPL, ZPL II, and DPL, ensuring easy integration into existing systems. A standard USB 2.0 interface provides stable data transfer.
It supports a comprehensive array of 1D barcodes (e.g., Code 128UCC, EAN13, UPCA) and advanced 2D barcodes (e.g., GS1 DataBar, QR Code, PDF417). With 0°, 90°, 180°, 270° rotation capabilities and built-in fonts, it offers extensive design flexibility.
User-Centric Design & Reliability
Its compact design (204 mm W x 164 mm H x 280 mm L) and light weight (2.5 kg) make it suitable for any desktop. Intuitive controls, including a power button, feed button, and a three-color LED indicator, simplify operation.

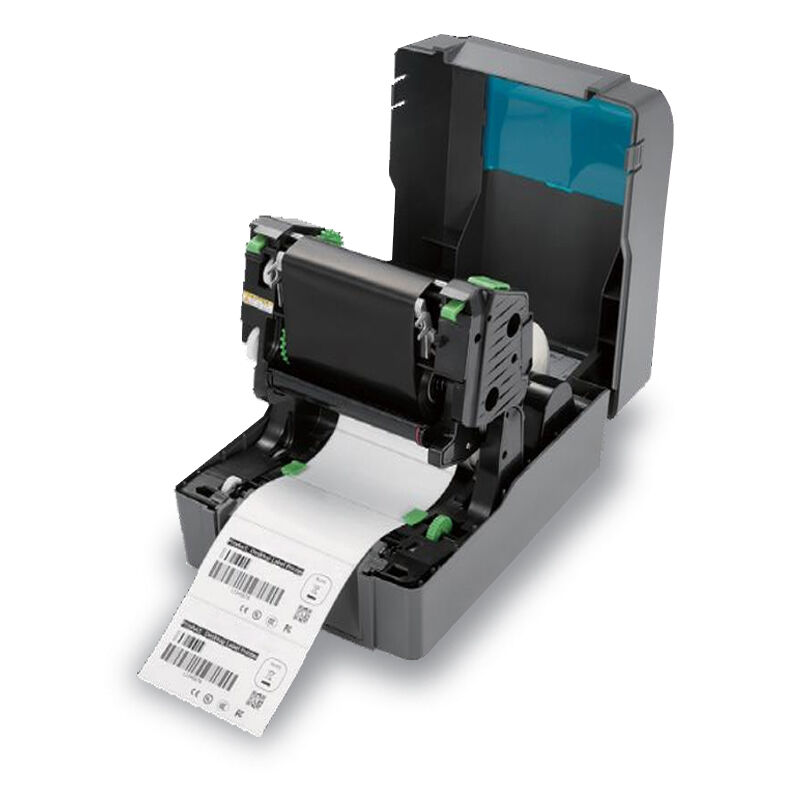

The printer supports diverse paper types with adjustable widths from 20 mm to 112 mm (0.8"~ 4.4"). A large internal paper roll capacity (max 127 mm (5") OD) and support for 300-meter ribbons reduce the need for frequent consumable changes, ensuring long-term stability.
This desktop label printer is a professional tool that delivers efficiency, intelligence, flexibility, and reliability, empowering your business to achieve new levels of productivity.
|
Resolution |
12 dots/mm (300 DPI) |
|
Printing Method |
Thermal Transfer / Direct Thermal |
|
Maximum Print Speed |
127 mm (5”) / second |
|
Maximum Print Width |
105.6 mm (4.16”) |
|
Maximum Print Length |
1,016 mm (40”) |
|
Dimensions |
204 mm (W) x 164 mm (H) x 280 mm (L) |
|
Weight |
2.5 kg |
|
Maximum Internal Paper Roll Size |
127 mm (5”) outer diameter |
|
Ribbon |
300 meters, maximum 67 mm outer diameter, 1-inch ribbon core (external wound ribbon) 110 meters, maximum 40 mm outer diameter, 0.5-inch ribbon core (external wound ribbon) |
|
Ribbon Width |
40 mm ~ 110 mm (1.6”~ 4.3”) |
|
CPU |
32-bit high-performance processor |
|
Memory |
8 MB Flash memory, 16 MB SDRAM |
|
Communication Interface |
USB 2.0 |
|
Power Specifications |
External automatic voltage switching power supply AC Input: AC 100-240V, 2.5A, 50-60Hz DC Output: DC 24V, 2.5A, 60W |
|
Operating Switches, Buttons, LEDs |
Power button, paper feed button and LED indicator (3 colors: green, orange, red) |
|
Sensors |
Paper gap sensor Black mark sensor (adjustable position) Ribbon end sensor Print head lift sensor |
|
Date/Time Generator |
Standard |
|
Buzzer |
Standard |
|
Built-in Fonts |
Eight bitmap fonts One set of Monotype® CG Triumvirate Bold Condensed vector fonts and True Type Font generator |
|
Barcodes |
1D codes Code 128UCC, Code 128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Code 39, Code 39 with check digit, Code 93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China Post, ITF14, Code 11, TELEPEN, TELEPENN, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS 2D codes GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417 |
|
Font and Barcode Rotation |
0°, 90°, 180°, 270° |
|
Command Set |
TSPL-EZD (compatible with EPL, ZPL, ZPL II, DPL) |
|
Paper Type |
Continuous paper, gap paper, black mark paper, tags, folded paper (external roll) |
|
Paper Width |
20 ~ 112 mm (0.8”~ 4.4”) |
|
Paper Thickness |
0.06 ~ 0.19 mm (2.36 ~ 7.48 mil) |
|
Paper Roll Core Size |
25.4 ~ 38 mm (1”~ 1.5”) |
|
Label Length |
5 ~ 25,400 mm (0.2”~ 1000”) 5 ~ 11,430 mm (0.2”~ 450”) |
|
Environmental Conditions: Operating Environment |
5 ~ 40 °C, Humidity (non-condensing) 25 ~ 85% |
|
Storage Environment |
-40 ~ 60 °C, Humidity (non-condensing) 10 ~ 90% |
1.Stronger R&D
We are always keeping innovation in scanning hardware according to markets trend. It is ok to research and development based on your ideas and advice.
2.Professional OEM/ODM Support
We offer comprehensive manufacturing partnerships, transforming your concepts into market-ready products with industry-leading quality and efficiency.
3.Best Quality Support
Strictest quality control,Obtain CE, FCC, RoHS and other certificates
4.Excellent After-sales Service
Enjoy total peace of mind with our full-lifecycle support, from expert guidance to free software updates.
Q1. What kind of company is Suzhou Langhuike?
A:Suzhou Langhuike is a world-leading IoT solutions provider with nearly 25 years of expertise in 1D/2D barcode recognition and UHF RFID core technologies.
Q2. What products do you offer?
A:Our portfolio includes a full range of scanning products: barcode scanners (embedded, fixed-mount, handheld, desktop), OEM engines, PDAs, and Barcode Printers.
Q3. What is your R&D capability? Do you support custom development?
A:We have strong R&D capabilities and are always innovating scanning hardware according to market trends. We support research and development based on your ideas and advice.
Q4. Do you provide OEM/ODM services?
A:Yes, we offer comprehensive manufacturing partnerships, transforming your concepts into market-ready products with industry-leading quality and efficiency.
Q5. What about the quality of your products? Are they certified?
A:We implement the strictest quality control and have obtained CE, FCC, RoHS, and other certifications to ensure excellent product quality.
Q6. What after-sales services do you provide?
A:We offer full-lifecycle support, including expert guidance and free software updates, providing you with complete peace of mind.
