IP67 Compact All-metal Body Industrial Fixed Mount 2d Barcode Scanner FS05A

1.industrial barcode scanner, fixed mount barcode scanner, high speed barcode scanner, industrial qr code fixed scanner, barcode scanner fixed, barcode scanner industrial, long range 2d fixed mounted scanner, powerful long range 2d fixed mounted scanner, 2d bar code scanner fixed mount industrial, 2d fixed mounted scanners long range, industrial fixed mount barcode scanner, dpm industrial barcode scanner, 2d fixed scanner, powerful 2d fixed scanner, 2d bar code scanner fixed industrial, industrial dpm barcode scanner, industrial fixed-mount barcode scanner

2.3C Electronics Manufacturing

•SMT Line Traceability: On the SMT (Surface Mount Technology) production line, scanning micro barcodes on circuit boards to achieve full traceability of components, production batches, and process flows.

•Component Management: Scanning barcodes on tiny internal components of products like mobile phones and computers for quality control and supply chain management.

•Finished Product Inspection: When a product comes off the assembly line, its ID is quickly scanned to automatically record production data and link it to the order system.

Automotive Manufacturing

•Component Traceability: Installing and scanning DPM (Direct Part Marking) codes on key components such as engines, transmissions, and headlights to enable permanent traceability from part to vehicle.

•Production Line Error-Proofing: On the assembly line, scanning barcodes to confirm that the correct component models are being used, preventing material mix-ups and incorrect assembly to ensure quality.

•Production Takt Time Control: Integrated into automated production lines, high-speed barcode reading triggers the next process step, adapting to the fast-paced nature of automotive manufacturing.

PCB Industry

•PCB Board Traceability: Scanning high-density micro QR codes on PCB boards to record their flow through various processes like drilling, plating, etching, and testing for fine-grained traceability.

•Quality Control: Linking with testing equipment to upload the barcode information of defective products to the MES (Manufacturing Execution System) for quarantine and analysis.

•Automation Equipment Integration: Due to its compact size, it can be easily integrated into equipment with extremely limited space, such as AOI (Automated Optical Inspection) machines and pick-and-place machines.

New Energy (Battery Manufacturing)

•Cell Traceability: During the production of lithium battery cells, scanning barcodes on the cells to record key data such as material composition, coating, winding, and packaging for subsequent capacity grading and PACK traceability.

•Module and PACK Line: On the assembly lines for battery modules and packs, scanning barcodes to ensure cell consistency and correct series-parallel combinations.

•Photovoltaic Module Manufacturing: Scanning barcodes on silicon wafers and solar cells for quality control and efficiency analysis during the production process.

Metal Manufacturing

•Material Tracking: On metal processing lines (e.g., CNC machining), scanning barcodes on material trays or workpieces to track material flow and processing status.

•DPM Code Reading: As metal surfaces often feature DPM codes created by laser etching or dot peening, the scanner needs excellent DPM reading capabilities to handle challenges like reflections and low contrast.

3.Core Specifications

Resolution:1280 x 1024

Frame Rate:60 fps

LED Chip:8 high-power LED beads, red light

Maximum Reading Speed:45 codes/s

Network Function:100M Ethernet,support TCP/IP,FTP,MODBUS,MC ,EtherNet/IP,PROFINET

Housing Material:Metal, zinc alloy

Protection Rating:IP67

Dimensions:45.5mm x 50mm x 26.5mm

Weight:150 g

Compact Industrial Fixed-Mount Scanner

High-Performance Imaging: Equipped with a high-resolution 1280 x 1024 sensor operating at a fluid 60 fps, this scanner captures data with exceptional speed and clarity. Its wide field of view (23° vertical, 28° horizontal) ensure consistent and reliable reads across a broad area.

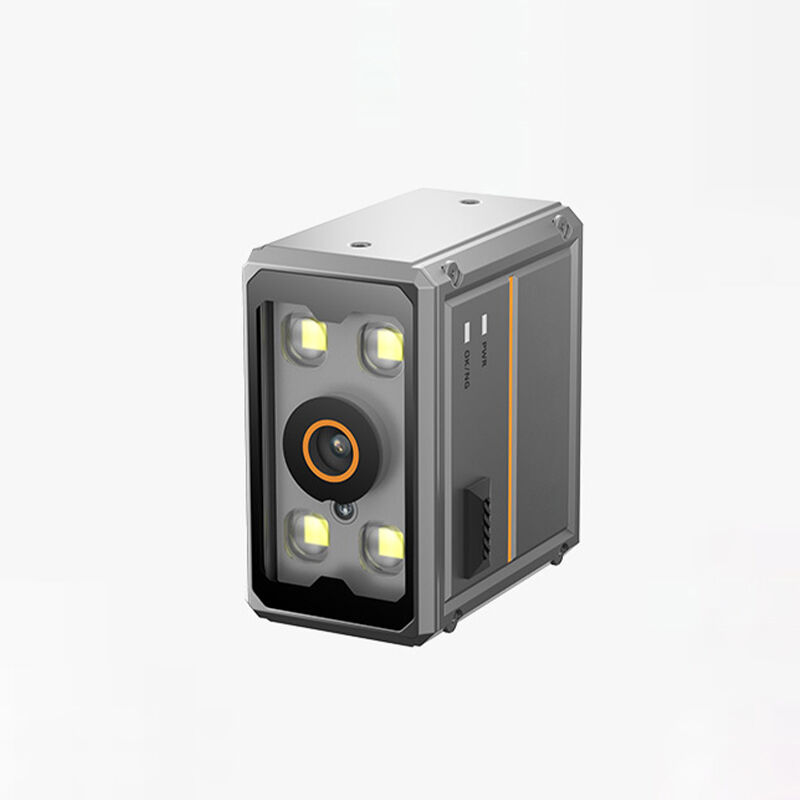

Advanced Illumination: Featuring eight high-power red LED beads and two precise green dot aimer, the scanner provides excellent illumination for all conditions. Choose between non-polarized and fully polarized lighting, with an optional diffuse reflector available to minimize glare on challenging surfaces.

Versatile Barcode Support: This device is capable of reading a comprehensive range of barcodes at up to 45 codes per second. It effortlessly decodes all major 1D barcodes (including Code 128, Code 39, and EAN), 2D codes (QR, Data Matrix, Aztec), and stacked codes like PDF417, making it a universal solution for your tracking and tracing needs.

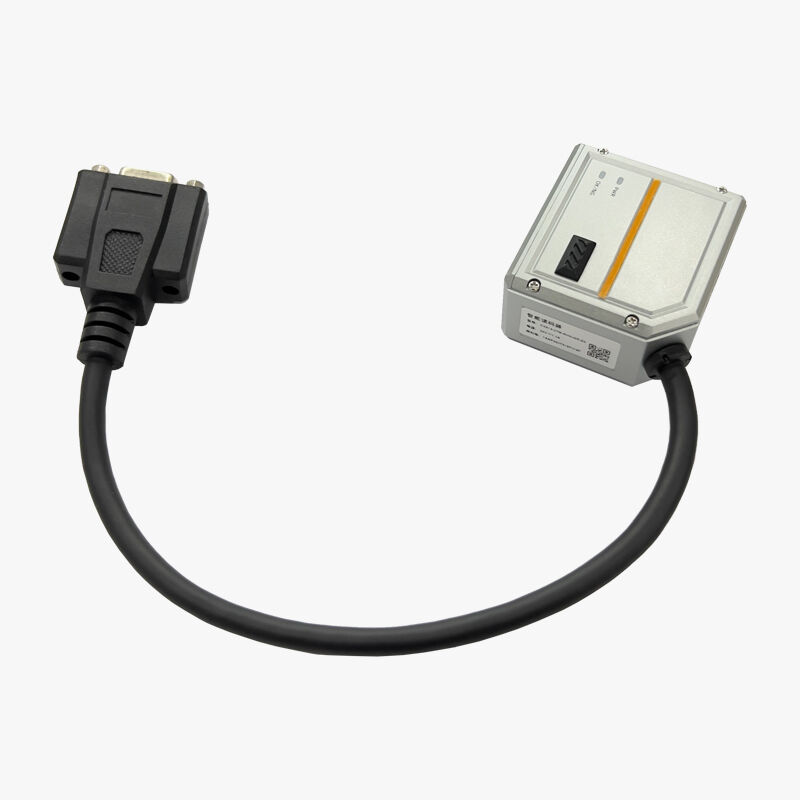

Robust Connectivity & I/O: Integrate with ease using a full suite of communication options, including 100M Ethernet (supporting TCP/IP, FTP, MODBUS, EtherNet/IP, and PROFINET), and RS232. The flexible I/O provides one input, two outputs, and one configurable input/output to connect with your existing automation systems.

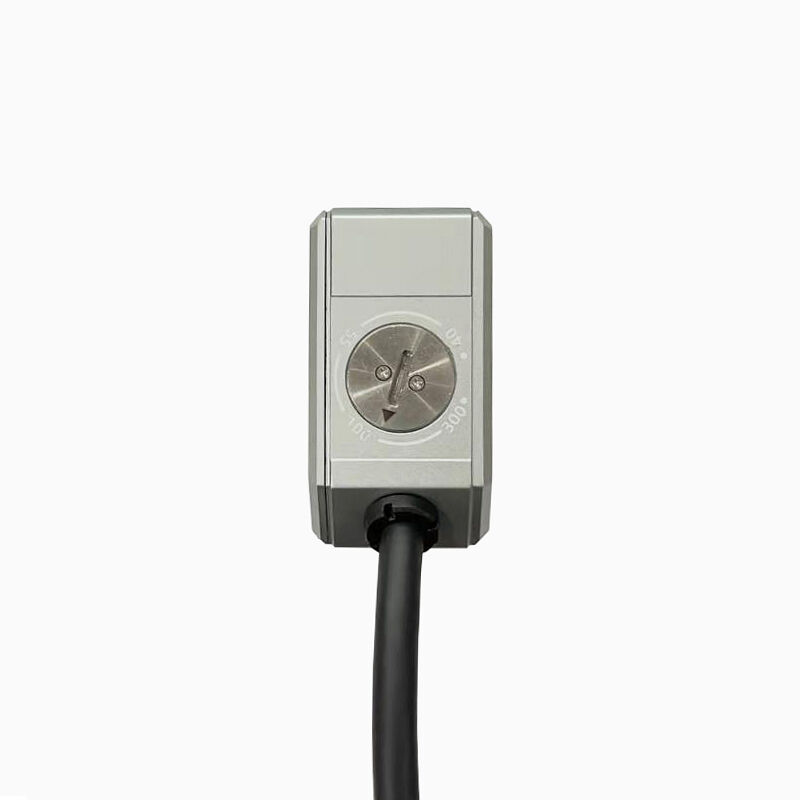

Durable and Compact Design: Built to last, the scanner is housed in a rugged metal, zinc alloy enclosure with an IP67 protection rating, ensuring it is protected from dust and water splashes. Its ultra-compact dimensions (45.5mm x 50mm x 26.5mm) and light weight (150g) allow for easy installation in space-constrained locations. It is designed to operate reliably in temperatures from 0 to 50°C.

Simple User Interaction: A single physical button allows for intuitive operation, including triggering, auto-adjustment, and restoring factory settings. Clear Power and Decoding OK/NG indicator lights and an audible buzzer provide immediate feedback on operational status.

This scanner is the ideal choice for manufacturing, logistics, and automation applications where performance, reliability, and size are critical.
