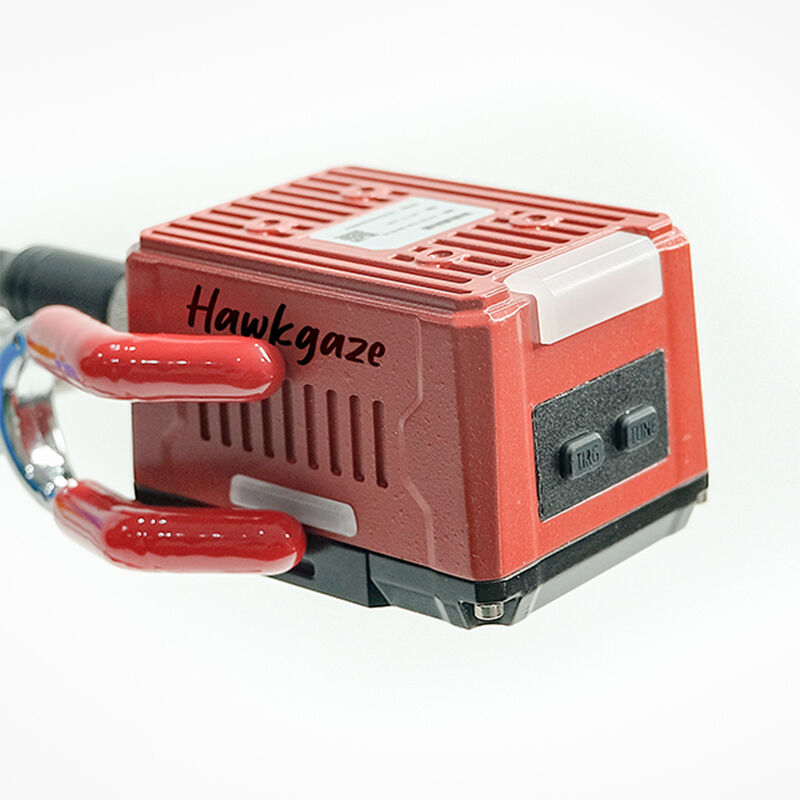

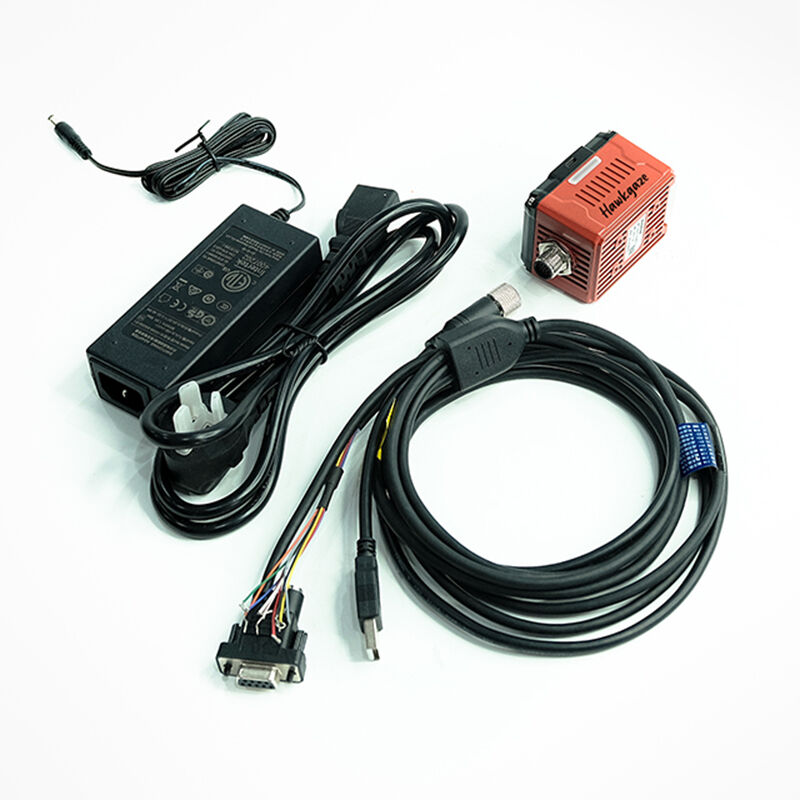

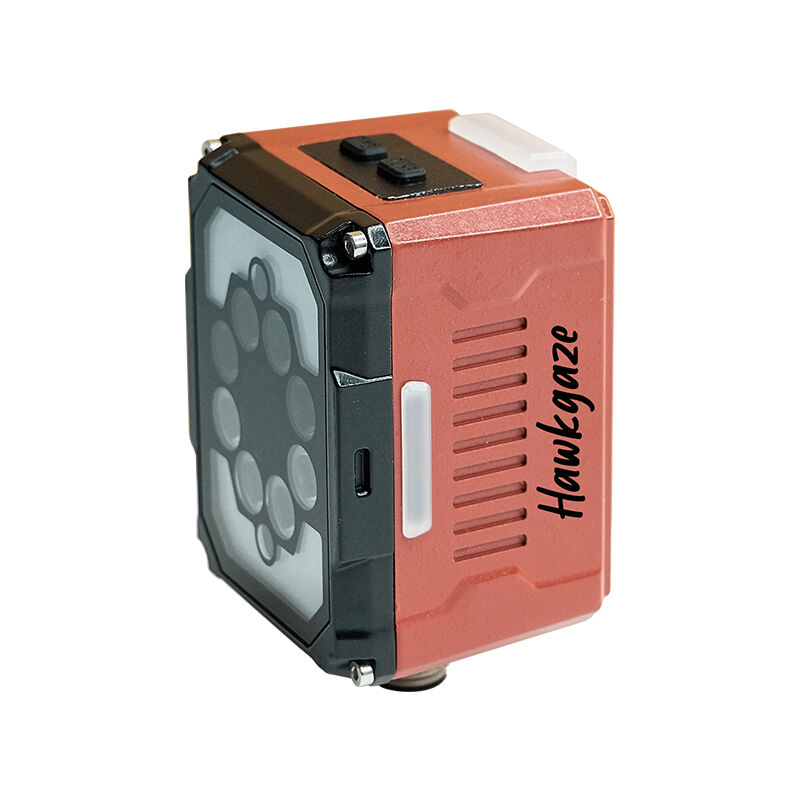

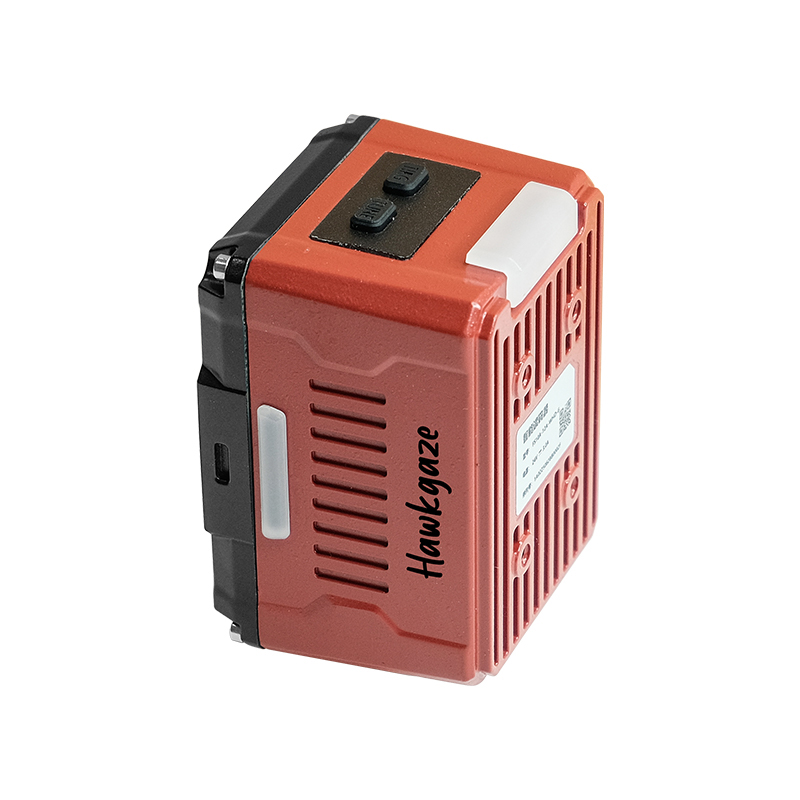

IP67 All-metal Body High Speed Industrial Fixed Mount 2d Barcode Scanner FS10A

1.industrial barcode scanner, fixed mount barcode scanner, high speed barcode scanner, industrial qr code fixed scanner, barcode scanner fixed, barcode scanner industrial, long range 2d fixed mounted scanner, powerful long range 2d fixed mounted scanner, 2d bar code scanner fixed mount industrial, 2d fixed mounted scanners long range, industrial fixed mount barcode scanner, dpm industrial barcode scanner, 2d fixed scanner, powerful 2d fixed scanner, 2d bar code scanner fixed industrial, industrial dpm barcode scanner, industrial fixed-mount barcode scanner

2.3C Electronics Manufacturing

•SMT Line Traceability: On the SMT (Surface Mount Technology) production line, scanning micro barcodes on circuit boards to achieve full traceability of components, production batches, and process flows.

•Component Management: Scanning barcodes on tiny internal components of products like mobile phones and computers for quality control and supply chain management.

•Finished Product Inspection: When a product comes off the assembly line, its ID is quickly scanned to automatically record production data and link it to the order system.

Automotive Manufacturing

•Component Traceability: Installing and scanning DPM (Direct Part Marking) codes on key components such as engines, transmissions, and headlights to enable permanent traceability from part to vehicle.

•Production Line Error-Proofing: On the assembly line, scanning barcodes to confirm that the correct component models are being used, preventing material mix-ups and incorrect assembly to ensure quality.

•Production Takt Time Control: Integrated into automated production lines, high-speed barcode reading triggers the next process step, adapting to the fast-paced nature of automotive manufacturing.

PCB Industry

•PCB Board Traceability: Scanning high-density micro QR codes on PCB boards to record their flow through various processes like drilling, plating, etching, and testing for fine-grained traceability.

•Quality Control: Linking with testing equipment to upload the barcode information of defective products to the MES (Manufacturing Execution System) for quarantine and analysis.

•Automation Equipment Integration: Due to its compact size, it can be easily integrated into equipment with extremely limited space, such as AOI (Automated Optical Inspection) machines and pick-and-place machines.

New Energy (Battery Manufacturing)

•Cell Traceability: During the production of lithium battery cells, scanning barcodes on the cells to record key data such as material composition, coating, winding, and packaging for subsequent capacity grading and PACK traceability.

•Module and PACK Line: On the assembly lines for battery modules and packs, scanning barcodes to ensure cell consistency and correct series-parallel combinations.

•Photovoltaic Module Manufacturing: Scanning barcodes on silicon wafers and solar cells for quality control and efficiency analysis during the production process.

Metal Manufacturing

•Material Tracking: On metal processing lines (e.g., CNC machining), scanning barcodes on material trays or workpieces to track material flow and processing status.

•DPM Code Reading: As metal surfaces often feature DPM codes created by laser etching or dot peening, the scanner needs excellent DPM reading capabilities to handle challenges like reflections and low contrast.

3.Core Specifications

Resolution:1280 x 1024

Frame Rate:60 fps

LED Chip:8 high-power LEDs and diffuse reflection light source at the top and bottom

Maximum Reading Speed:100 codes/s

Network Function:100M Ethernet,support TCP/IP,FTP,MODBUS,MC ,EtherNet/IP,PROFINET

Housing Material:Metal, aluminum alloy

Protection Rating:IP67

Dimensions:66mm x 49mm x 43.5mm

Weight:280 g

High-Performance Industrial Fixed-Mount Scanner

Superior Imaging and Reading Performance

Equipped with a 1.3-megapixel high-resolution global shutter sensor, it captures sharp, motion-blur-free images even on high-speed production lines.

Achieves a decoding speed of up to 100 codes per second, effortlessly handling high-throughput demands.

Features advanced autofocus and a wide depth of field from 60mm to 1000mm, enabling flexible reading of barcodes at various distances and sizes without frequent adjustments.

Intelligent Illumination for Any Challenge

Built with 8 high-power LED chips and an innovative top-and-bottom diffuse reflection light source design, ensuring uniform illumination on reflective, dark, or uneven surfaces.

Comes standard with a polarized/non-polarized light combination and offers optional fully transparent, fully polarized, or fully diffuse covers to easily tackle challenging materials like metal and plastic film.

Omni-Directional Decoding for Universal Compatibility

Provides comprehensive support for all major 1D/2D codes, including Code 128, QR, Data Matrix (GS1), and stacked codes like PDF417.

Its superior algorithms can effortlessly read high-density barcodes with a minimum resolution of 0.014mm, successfully decoding poorly printed, damaged, or dirty codes.

Robust Industrial Integration and Connectivity

Housed in a rugged IP67-rated aluminum alloy casing, it is waterproof and dustproof, ensuring stable operation in harsh environments from 0 to 50°C.

Features a rich set of built-in industrial communication protocols, including TCP/IP, PROFINET, EtherNet/IP, and MODBUS, for seamless integration with your PLC and industrial network.

Provides 3 channels of optically isolated inputs and 3 channels of isolated outputs for direct interaction with sensors, alarm lights, and other production line equipment.

User-Friendly Design for Easy Deployment

Its compact size of 66mm x 49mm x 43.5mm and light weight of only 280g allow for easy installation in tight spaces.
