Place of Origin: |
Jiangsu China |
Brand Name: |
Hawkgaze |
Model Number: |
9344 |
Certification: |
CE,FCC,RoHS |
Minimum Order Quantity: |
1 piece |
Price: |
230 USD |
Packaging Details: |
Neutral cardboard box |
Delivery Time: |
Up to 50 pcs: 10 days; Up to 500 pcs: 30 days |
Payment Terms: |
T/T,L/C,credit card |
Supply Ability: |
1000 pieces/month |
1.pda handheld, android pda, android barcode scanner, pda barcode scanner, pda scanner, handheld terminal pda, barcode scanner pda, mobile barcode scanner,
barcode scanner for inventory, android handheld scanner, pda android scanner,
rugged handheld pda, android 2d barcode scanner, pdas 1d 2d, qr code scanner android, handheld terminal android pdas, android handheld pda, portable pda handheld scanning, barcode reader pda android, android pda nfc, barcode reader scanner warehouse
2.Key Applications of Mobile Data Terminals
Logistics & Express Delivery
PDAs streamline parcel handling—from collection to delivery—by rapidly scanning and updating logistics statuses, improving accuracy and speed.
Retail Industry
In retail, PDAs facilitate inventory management, price checks, and customer service. They enable quick product scanning for stock, pricing, and promotions, optimizing displays and enhancing customer interaction.
Warehouse Management
For warehouses, PDAs manage inbound, outbound, inventory, and relocation tasks. They use barcode/RFID scanning to track goods, ensuring accurate inventory and boosting operational efficiency.
Manufacturing Industry
PDAs in manufacturing support material tracking, production traceability, quality control, and equipment inspections, ensuring precise monitoring and compliance.
Public Utilities
Public utility sectors utilize PDAs for on-site data collection and inspections, such as recording meter readings and documenting equipment status to ensure operational continuity.
Telecommunications Industry
In telecom, PDAs assist field engineers with network installation, maintenance, troubleshooting, and service, improving operational efficiency and response times.
3.Core Specifications
CPU:MTK MT6762, 8-core Cortex-A53, 2.0GHz
Memory:4+64GB
Operating System:Android 12.0

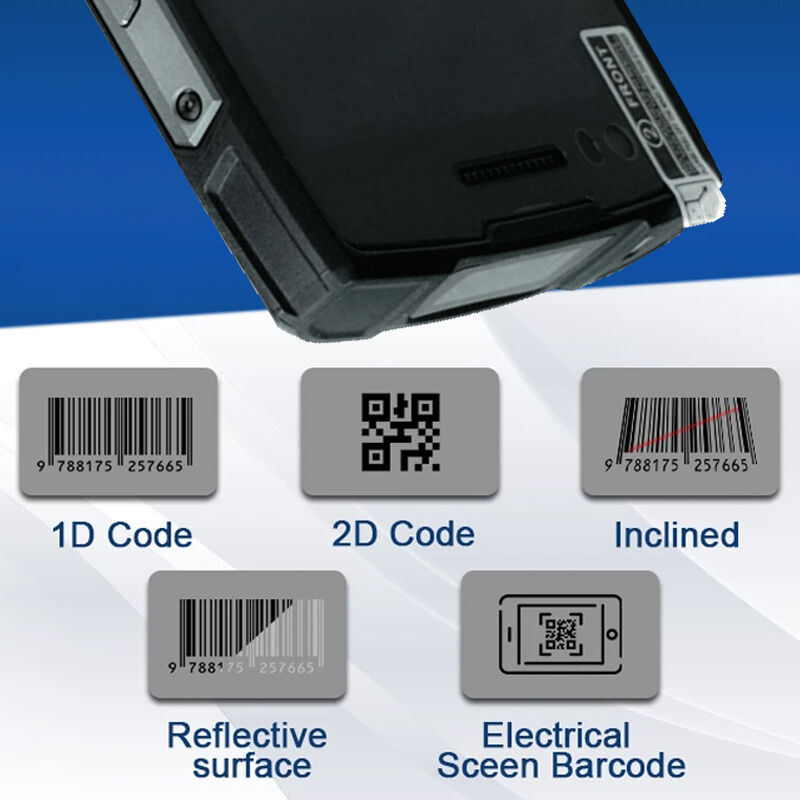

Barcode Scanning:Professional 1D/2D scanning engine
Battery:Rechargeable lithium-ion battery, rated capacity 5000mAh, PE fast charging
Display:5.45 inch, 1440 (H) × 720 (W) HD+, Industrial IPS High-definition Display
Sealing Level:IP67
Weight:249 g / 8.78 oz. (including battery)
Dimensions:158(L) × 76(W) × 15.3(H) mm
Expansion Slot:MicroSD card, supports up to 256GB; Rear bottom POGO PIN: 2 x Nano SIM cards
Unleash Peak Performance with the Advanced Enterprise PDA
Experience unparalleled efficiency and reliability with our PDA, meticulously engineered to meet the rigorous demands of modern business environments. Combining robust hardware with an intuitive operating system, this device is your ultimate partner for seamless operations and enhanced productivity.
Key Features:
Powerful Processing: Driven by an octa-core 2.0GHz processor, this PDA delivers lightning-fast performance, ensuring smooth multitasking and rapid application execution.
Ample Memory & Storage: With 4GB RAM and 64GB ROM, you'll have abundant space for critical applications, data, and files, keeping your operations fluid and responsive.
Latest Android OS: Running on Android 12, the device offers a user-friendly interface, enhanced security features, and access to a vast ecosystem of business applications.

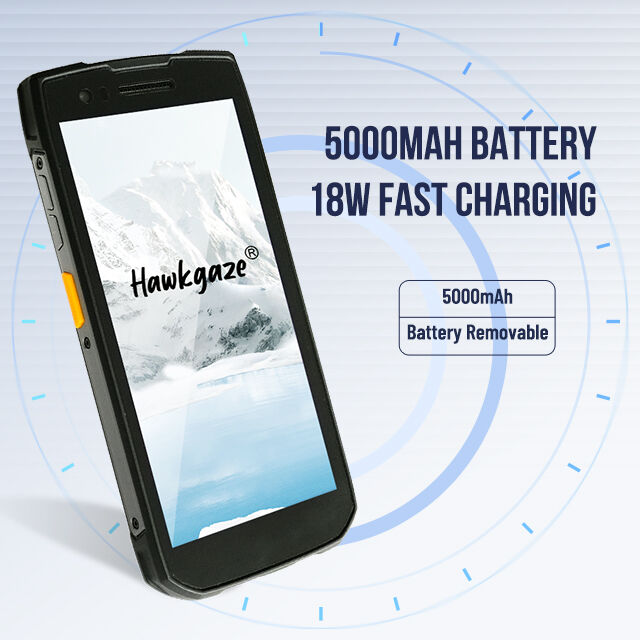

All-Day Power: A high-capacity 5000mAh battery provides extended operational hours, minimizing downtime. Coupled with 18W fast charging, you can quickly power up and stay connected.

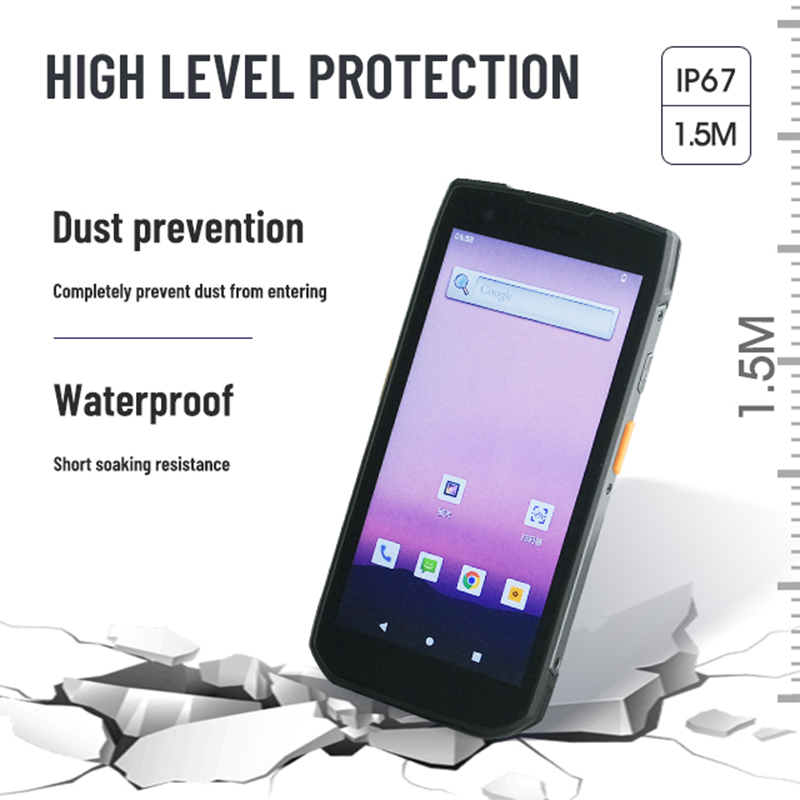

Rugged Durability: Boasting an IP67 rating, this PDA is built to withstand harsh conditions, offering superior protection against dust and water ingress, ensuring reliability in challenging work settings.
Vivid HD+ Display: The 5.45-inch HD Industrial-grade IPS display (1440x720) offers crisp visuals and clear readability, even in varying light conditions, optimizing user experience for data entry and viewing.
Lightweight Design: Weighing just 249g (with battery), its ergonomic and lightweight design ensures comfortable handling during prolonged use, reducing user fatigue.
Integrated Professional Scanning: Equipped with a professional 1D/2D scanning engine, this PDA provides rapid and accurate data capture, streamlining inventory management, logistics, and point-of-sale operations.
|
Physical Parameters |
|
|
Dimensions |
158(L) × 76(W) × 15.3(H) mm |
|
Weight |
249 g / 8.78 oz. (including battery) |
|
Display |
5.45 inch, 1440 (H) × 720 (W) HD+, Industrial IPS High-definition Display |
|
Touch Screen |
Dual-mode capacitive touch, supports stylus |
|
Battery |
Rechargeable lithium-ion battery, rated capacity 5000mAh, PE fast charging, charging time not exceeding 3.5h (at room temperature) |
|
Expansion Slot |
MicroSD card, supports up to 256GB; Rear bottom POGO PIN: 2 x Nano SIM cards |
|
Network Connection |
2G/3G/4G, Wi-Fi, Bluetooth |
|
Buttons |
2 dedicated scan buttons, power button, volume up/down buttons, customizable button |
|
Interface Port |
Bottom USB 2.0, supports OTG, 9V/2A charging interface |
|
Performance Parameters |
|
|
CPU |
MTK MT6762, 8-core Cortex-A53, 2.0GHz |
|
Operating System |
Android 12.0 |
|
RAM |
4GB LPDDR3 |
|
Flash Memory |
64GB eMMC 5.1 |
|
User Environment |
|
|
Operating Temperature |
-20°C to +55°C |
|
Storage Temperature |
-30°C to +70°C |
|
Humidity |
5% to 95%, non-condensing |
|
Sealing Level |
IP67 |
|
Drop Specification |
Can withstand multiple drops from 1.5m onto concrete |
|
Tumble Specification |
Can withstand 1000 tumbles from 1.6 ft./0.5 m |
|
Electrostatic Discharge (ESD) |
+/-15 kV air discharge, +/-8 kV direct discharge |
|
NFC/Scanning/Antenna |
|
|
Barcode Scanning |
Professional 1D/2D scanning engine |
|
Camera |
Front: 5MP, f/2.4 aperture; Rear: 13MP autofocus, supports PDAF phase detection autofocus, f/2.2 aperture, LED flash generates balanced white light, supports flashlight mode |
|

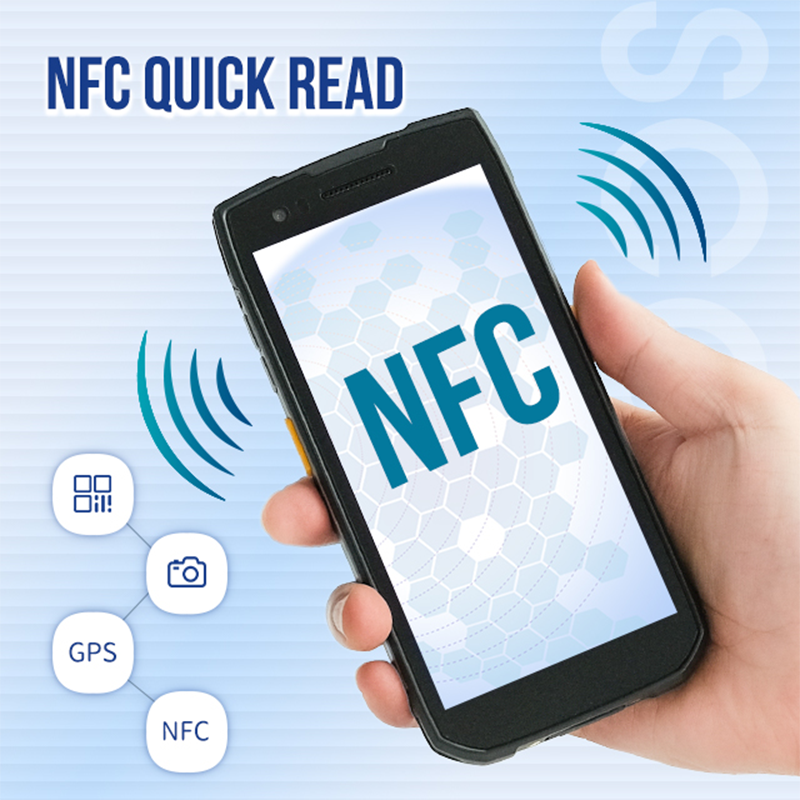

NFC |
Supports ISO14443A/B, ISO15693, MIFARE, FeliCa, etc., supports card reading, peer-to-peer, and card emulation |
|

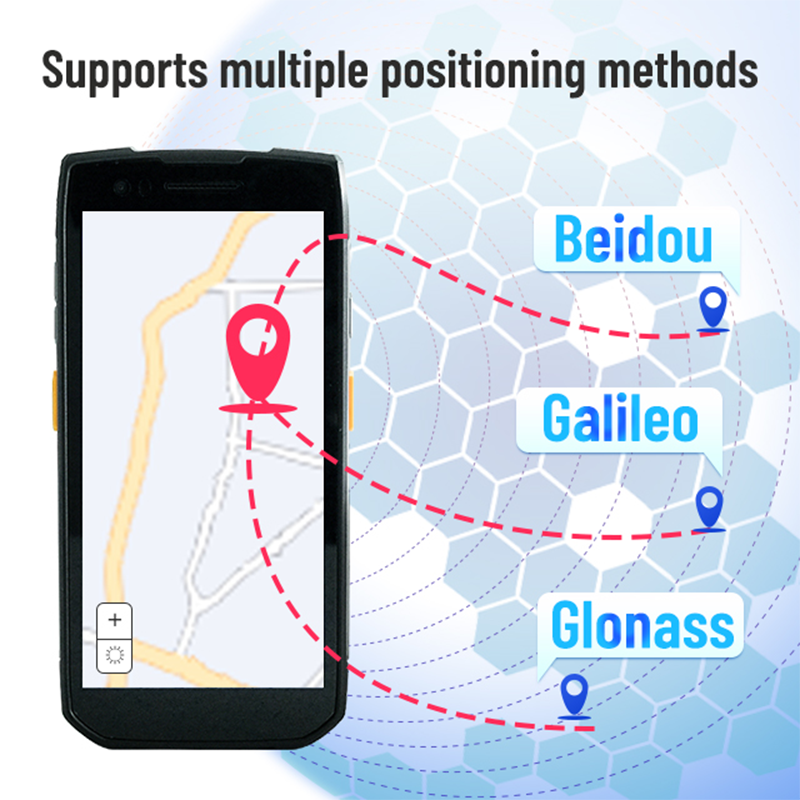

Positioning System |
GPS-L1 supports A-GPS; GLONASS; BeiDou; Galileo |
|
Wireless Connection |
IEEE 802.11 ac/a/b/g/n/d/e/h/i/j/k/r/v/w (2.4G/5G dual-band), supports 802.11r fast roaming |
|
Bluetooth |
Bluetooth BT5.0 + BR/EDR + BLE, supports Wi-Fi coexistence, supports Bluetooth auto-reconnect, communication distance > 10m |
|
Optional Accessories |
|
|
Cradle Charger |
Single cradle (Charging + USB communication) |
1.Stronger R&D
We are always keeping innovation in scanning hardware according to markets trend. It is ok to research and development based on your ideas and advice.
2.Professional OEM/ODM Support
We offer comprehensive manufacturing partnerships, transforming your concepts into market-ready products with industry-leading quality and efficiency.
3.Best Quality Support
Strictest quality control,Obtain CE, FCC, RoHS and other certificates
4.Excellent After-sales Service
Enjoy total peace of mind with our full-lifecycle support, from expert guidance to free software updates.
Q1. What kind of company is Suzhou Langhuike?
A:Suzhou Langhuike is a world-leading IoT solutions provider with nearly 25 years of expertise in 1D/2D barcode recognition and UHF RFID core technologies.
Q2. What products do you offer?
A:Our portfolio includes a full range of scanning products: barcode scanners (embedded, fixed-mount, handheld, desktop), OEM engines, PDAs, and Barcode Printers.
Q3. What is your R&D capability? Do you support custom development?
A:We have strong R&D capabilities and are always innovating scanning hardware according to market trends. We support research and development based on your ideas and advice.
Q4. Do you provide OEM/ODM services?
A:Yes, we offer comprehensive manufacturing partnerships, transforming your concepts into market-ready products with industry-leading quality and efficiency.
Q5. What about the quality of your products? Are they certified?
A:We implement the strictest quality control and have obtained CE, FCC, RoHS, and other certifications to ensure excellent product quality.
Q6. What after-sales services do you provide?
A:We offer full-lifecycle support, including expert guidance and free software updates, providing you with complete peace of mind.
