S331 Ip65 Durable Wireless Industrial Dpm Handheld Barcode Scanner for the traceability management of manufacturing

1.industrial barcode scanner, 2d barcode scanner wireless, wireless qr code scanner, handheld qr code scanner, 2d wireless barcode scanner, wireless 2d barcode scanner, barcode scanner industrial, wireless handheld barcode scanner, dpm industrial barcode scanner

2.In today's highly digitized industrial landscape, precise and efficient data traceability is critical to enhancing management efficiency and ensuring product quality. With its rugged design and superior decoding performance, the industrial handheld scanner has become the core tool for automated identification and data capture across a wide range of industries.

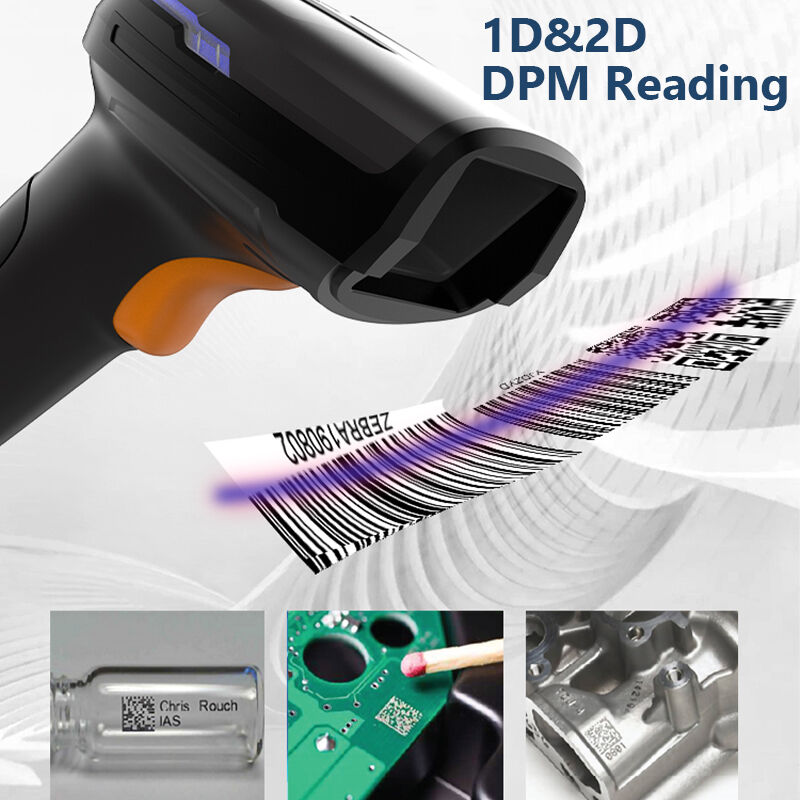

One of the most prominent advantages of this scanner is its exceptional DPM (Direct Part Marking) decoding capability. In high-end manufacturing, many components are marked with DPM codes via methods like laser etching or dot peening due to material or size constraints. Our scanner effortlessly handles these challenges, smoothly reading all types of tiny and complex DPM barcodes to ensure every production stage is accurately traced from the source.

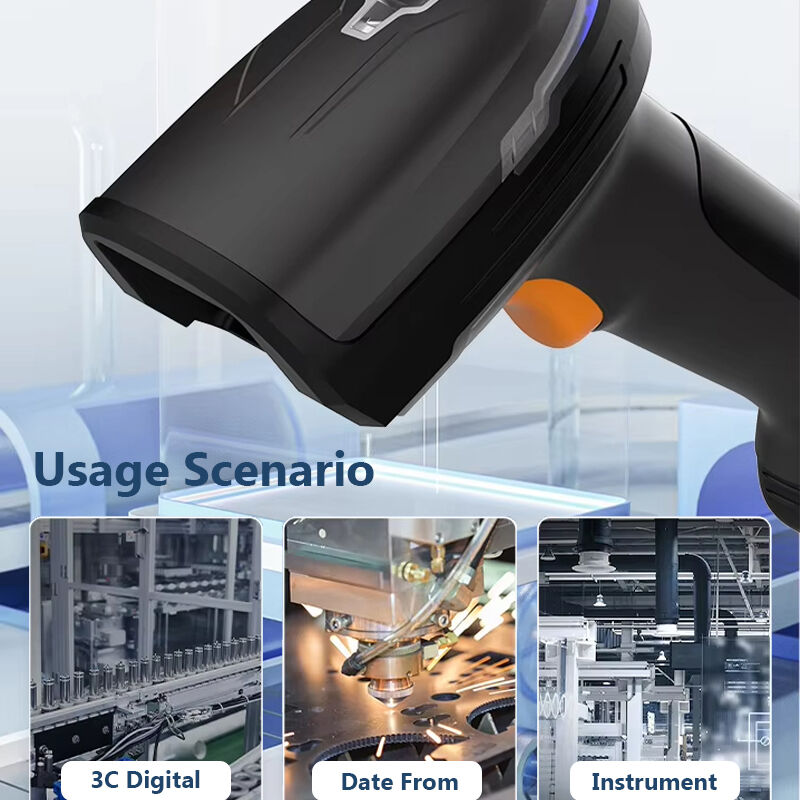

This scanner demonstrates unparalleled adaptability and reliability, no matter the application scenario:

•Mobile Phone Assembly & Medical Device Manufacturing: In these fields that demand extreme precision, the scanner accurately reads DPM codes and high-density barcodes on PCB circuit boards, metal casings, and tiny components. Complemented by its bright LED illumination, it ensures clear imaging even on poorly lit production lines. This guarantees full traceability from material sourcing, assembly, and quality inspection to finished goods warehousing, meeting strict industry regulatory standards.

•Photovoltaic (PV) Product Manufacturing: The scanner delivers outstanding performance when faced with low-contrast, laminated, or smudged barcodes commonly found in PV module production. It reliably reads serial numbers on silicon wafers, solar cells, and backsheets, ensuring quality monitoring throughout the entire lifecycle of PV products, from production to final deployment.

•Retail, Wholesale, & Logistics Warehousing: In these fast-paced, high-intensity environments, efficiency is paramount. Our scanner supports nearly all universal 1D and 2D barcodes, from EAN/UPC codes on product packaging to QR codes on shipping labels. Its powerful algorithm also delivers excellent performance in scenarios involving low-contrast, wrinkled, smudged, distorted, or even damaged printed barcodes. This dramatically improves the efficiency and accuracy of goods receiving/shipping, inventory counting, order picking, and logistics tracking, significantly reducing manual errors.

3.Core Specifications

Pixels:1280 Pixels (H) x 1080 Pixels (V), 1.3 Million Pixels C-MOS

Illumination:White intense light, Laser crosshair aiming

Reading Precision:1D: ≥ 3 mil, 2D: ≥ 5 mil

Dimensions：Main Unit: 181 x 136 x 77 mm, Base: 87 x 220 x 82 mm

Weight (Excl. Cable):Wireless Version (Incl. Battery): ≈ 310g, Base: ≈ 250g

Communication Distance: 100m (Open space)

Protection Rating: IP65

High-Performance Wireless Handheld Industrial Scanner: Superior Performance, Robust Durability

Our wireless handheld industrial scanner, meticulously engineered to meet the demands for high efficiency and reliability in rigorous industrial environments. This scanner integrates cutting-edge scanning technology, a robust and durable construction, and flexible wireless connectivity, making it an ideal choice to enhance your workflow efficiency.

Exceptional Scanning Performance

Equipped with a 1.3-megapixel C-MOS sensor (1280x1080), this product ensures that every scan captures clear, high-resolution images. Coupled with white intense light and laser crosshair aiming, precise focusing is achieved even in low-light or complex conditions. Its extensive scanning distance (50mm-330mm for UPCA -13 mil 100% PCS=90%, and 40mm-70mm for Code 39 -3 mil PCS=90%) and multiple scanning modes (button, auto-sensing, external trigger, serial command) offer users immense operational flexibility. It effortlessly identifies both 1D and 2D barcodes, including mainstream symbologies such as UPC A, EAN 8, Code 128, QR Code, Data Matrix, and PDF417, providing reading precision up to 3 mil (1D) and 5 mil (2D). Furthermore, its excellent depth of field and print contrast greater than 20% guarantee superior performance across various application scenarios.

Robust Industrial-Grade Design

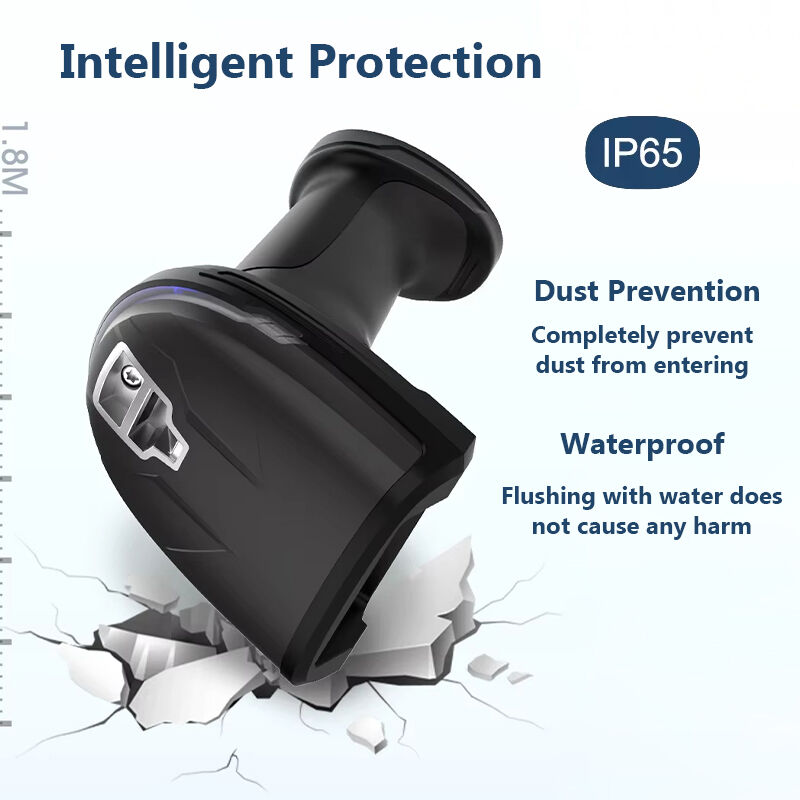

Built specifically for industrial settings, this scanner demonstrates exceptional durability. It operates stably within a wide temperature range of -20°C to +50°C and can be stored from -40°C to +70°C, supporting relative humidity from 5% to 95% (non-condensing), ensuring outstanding performance in extreme climatic conditions. High ESD protection of ±12 kV (air discharge) and ±8 kV (direct discharge) effectively guards against electrostatic interference, safeguarding the device. Concurrently, its 1.8-meter drop height design allows it to withstand accidental drops during daily operations, significantly extending the product's lifespan.

Flexible and Convenient Wireless Connectivity

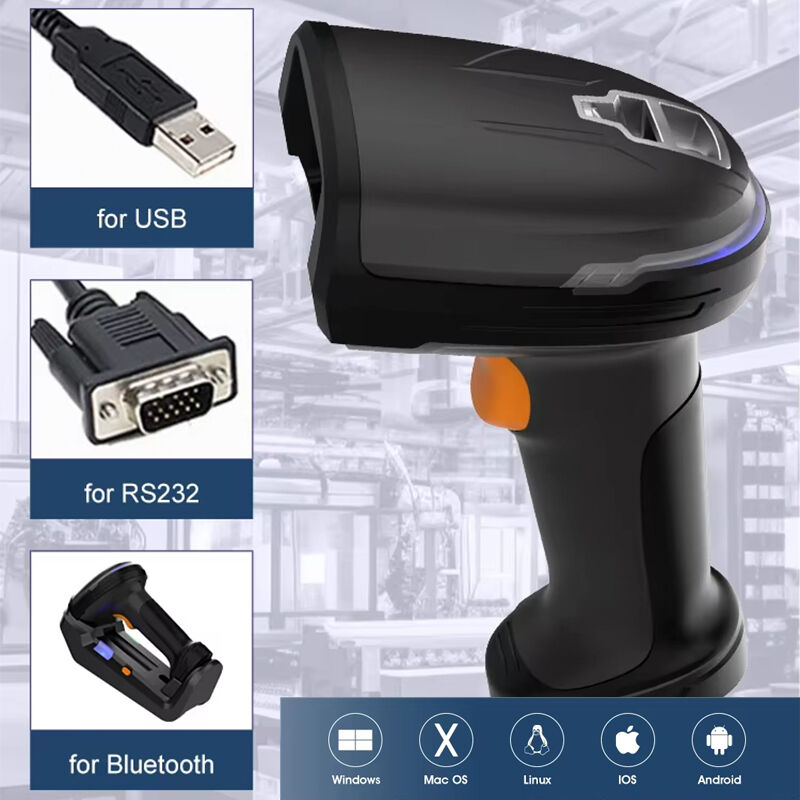

Bid farewell to cable constraints and embrace the freedom of wireless operation. This product supports Bluetooth HID/SPP/BLE and 2.4G dual-mode wireless connectivity, offering a communication distance of up to 100 meters in open spaces, providing users with unparalleled mobility. The built-in 3200mAh high-capacity battery, combined with efficient power management (typical operating current of 260 mA, maximum 380 mA), guarantees prolonged continuous operation, reducing charging frequency. Multiple notification methods, including a buzzer, LED indicator, and vibrator, ensure users receive clear operational feedback in any environment.

With its exceptional performance, robust industrial-grade design, and flexible wireless connectivity, this wireless handheld industrial scanner will be a powerful tool to boost your productivity and optimize your workflows.

1.Stronger R&D

We are always keeping innovation in scanning hardware according to markets trend. It is ok to research and development based on your ideas and advice.

2.Professional OEM/ODM Support

We offer comprehensive manufacturing partnerships, transforming your concepts into market-ready products with industry-leading quality and efficiency.

3.Best Quality Support

Strictest quality control,Obtain CE, FCC, RoHS and other certificates

4.Excellent After-sales Service

Enjoy total peace of mind with our full-lifecycle support, from expert guidance to free software updates.

Q1. What kind of company is Suzhou Langhuike?

A:Suzhou Langhuike is a world-leading IoT solutions provider with nearly 25 years of expertise in 1D/2D barcode recognition and UHF RFID core technologies.

Q2. What products do you offer?

A:Our portfolio includes a full range of scanning products: barcode scanners (embedded, fixed-mount, handheld, desktop), OEM engines, PDAs, and Barcode Printers.

Q3. What is your R&D capability? Do you support custom development?

A:We have strong R&D capabilities and are always innovating scanning hardware according to market trends. We support research and development based on your ideas and advice.

Q4. Do you provide OEM/ODM services?

A:Yes, we offer comprehensive manufacturing partnerships, transforming your concepts into market-ready products with industry-leading quality and efficiency.

Q5. What about the quality of your products? Are they certified?

A:We implement the strictest quality control and have obtained CE, FCC, RoHS, and other certifications to ensure excellent product quality.

Q6. What after-sales services do you provide?

A:We offer full-lifecycle support, including expert guidance and free software updates, providing you with complete peace of mind.
