M228 Embedded 2d Barcode Scanner for Vending Machine Turnstile Barrier Gate Warehousing and Logistics

1.embedded barcode scanner, Barcode Scan Engine， Barcode Scanner Module， Fixed-Mount Scanner， OEM Barcode Scanner

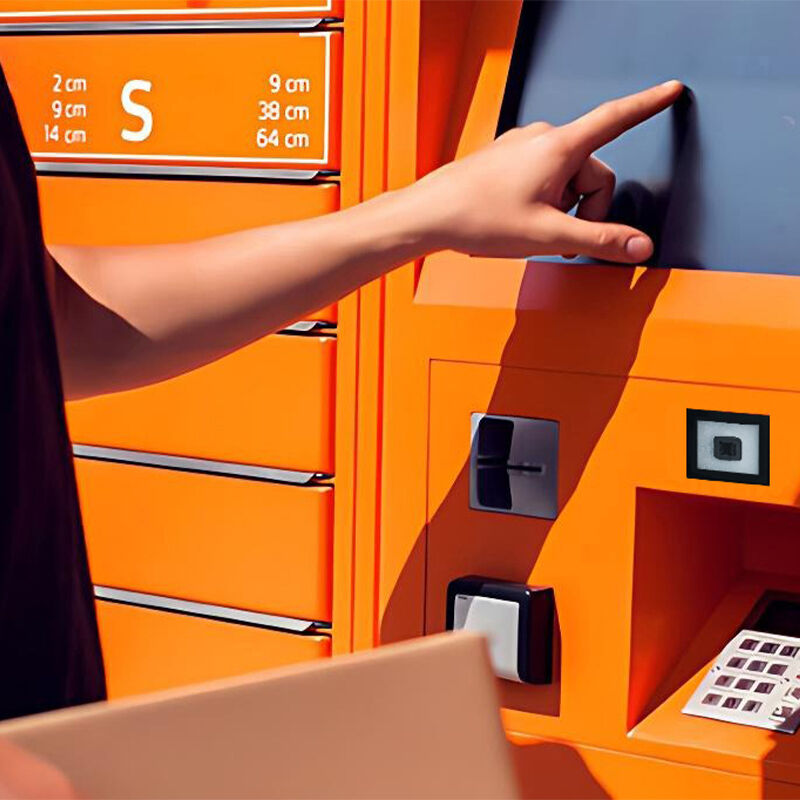

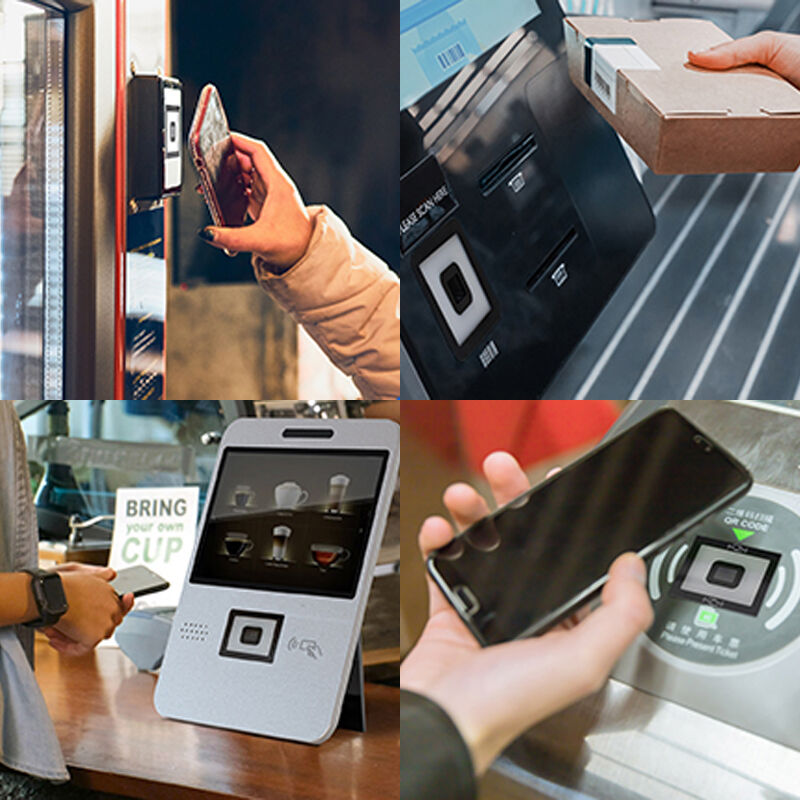

2.Self-Service Kiosks

This is one of the most common applications for embedded scanners, allowing machines to "read" credentials presented by users.

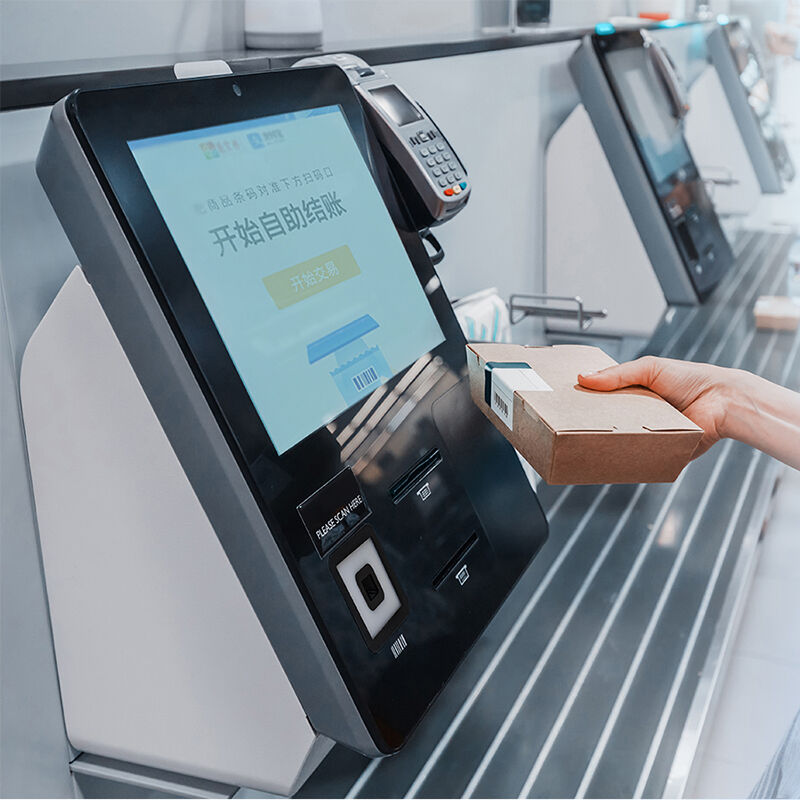

Self-Checkout & Payment: In supermarket self-checkout counters, restaurant self-ordering systems, or vending machines, customers can scan product barcodes or mobile payment codes (e.g., Apple Pay, Google Pay QR codes) to complete purchases.

Ticketing & Verification: At self-service ticketing machines and access gates in cinemas, train stations, airports, or event venues, scanning QR code e-tickets or ID card barcodes enables fast entry and identity verification.

Information Inquiry: On information terminals in shopping malls or libraries, scanning the barcode of a book or product retrieves detailed information.

Smart Access Control

Embedded scanners provide convenient and contactless access for buildings, campuses, and transportation systems.

Office/Residential Access: Employees or visitors scan a dynamic QR code on their phone or a barcode on their ID badge to open doors or turnstiles.

Public Transit: Integrated into buses or subway fare gates, scanners allow passengers to pay and pass through quickly by scanning a transit code.

Visitor Management: Scanners integrated into visitor registration kiosks quickly read ID documents or appointment QR codes to automate the check-in process.

Healthcare

In the medical field, where data accuracy is paramount, embedded scanners significantly reduce human error.

Medical Devices: Integrated into blood analyzers, urinalysis machines, and other lab equipment, they automatically scan barcodes on sample tubes to accurately link test results with patient information.

Medication Management: On smart drug cabinets or pharmacy workstations, scanning barcodes on medication packages ensures accurate dispensing and manages inventory.

Patient Identification: Integrated into mobile nursing carts or bedside devices, scanning a patient's wristband barcode confirms their identity, ensuring medication and treatment safety.

Logistics & Warehousing

In high-speed logistics and sorting centers, embedded scanners are essential for rapid package processing.

Automated Sorting: Multiple high-speed scanners installed above or beside conveyor belts automatically read shipping labels on packages, directing the sorting system to route them to the correct destination.

Smart Warehousing: Integrated into AGVs (Automated Guided Vehicles) or stacker cranes, they automatically identify barcodes on shelves and goods to automate inbound and outbound warehouse operations.

3.Core Specifications

Image Sensor: 640 * 480 CMOS

Illumination: White LED

Resolution: ≥5mil (1D)

Motion Tolerance: 1.5m/s

Interface: TTL-232, RS-232, USB

Operating Voltage: 5VDC±5%

Dimensions: 7.5*6.5*3.3cm

Weight:89.5g

High-Performance Embedded 2D Barcode Scan Module: Fast, Accurate, and Easy to Integrate

This module, with its exceptional decoding performance, compact and robust design, and flexible integration options, can be easily integrated into a wide range of terminal devices, providing an efficient and reliable automatic identification solution for your business. Whether in retail, logistics, manufacturing, or healthcare, this product excels in optimizing workflows and enhancing user experience.

Superior Scanning Performance

•Equipped with a 640x480 CMOS image sensor and white LED illumination, it achieves fast and accurate barcode reading even in dimly lit environments.

•Comprehensive support for mainstream 1D and 2D barcodes, including PDF417, QR Code, Data Matrix, as well as Code 128, EAN-13, and more, offering high decoding versatility.

•A minimum resolution of ≥5mil enables easy reading of high-density barcodes.

Efficient Reading Capability

•High motion tolerance of up to 1.5m/s ensures stable and efficient scanning tasks even in dynamic environments.

•Features a wide field of view with 68° horizontal and 51° vertical angles, along with 360° omnidirectional reading capability, allowing users to scan effortlessly without precise alignment.

•Optimized depth of field ranges for different barcode types, such as 30mm-85mm for EAN-13 (13mil) and 15mm-75mm for QR Code (15mil), adapting to diverse application scenarios.

Compact and Robust Design

•Its compact dimensions of only 7.5 x 6.5 x 3.3 cm and lightweight design of 89.5g allow for easy integration into space-constrained devices.

•Industrial-grade durability supports stable operation across a wide temperature range from -20°C to 60°C and safe storage from -40°C to 70°C.

•Humidity tolerance of 5% to 95% (non-condensing) ensures reliable performance in various harsh environments.

Flexible Integration and Connectivity

•Offers multiple communication interfaces including TTL-232, RS-232, and USB, facilitating seamless connection with various host controllers.

•Low voltage 5VDC power supply and optimized power consumption design, with standby current as low as 120mA, effectively reducing overall energy consumption.

1.Stronger R&D

We are always keeping innovation in scanning hardware according to markets trend. It is ok to research and development based on your ideas and advice.

2.Professional OEM/ODM Support

We offer comprehensive manufacturing partnerships, transforming your concepts into market-ready products with industry-leading quality and efficiency

3.Best Quality Support

Strictest quality control,Obtain CE, FCC, RoHS and other certificates

4.Excellent After-sales Service

Enjoy total peace of mind with our full-lifecycle support, from expert guidance to free software updates.

Q1. What kind of company is Suzhou Langhuike?

A:Suzhou Langhuike is a world-leading IoT solutions provider with nearly 25 years of expertise in 1D/2D barcode recognition and UHF RFID core technologies.

Q2. What products do you offer?

A:Our portfolio includes a full range of scanning products: barcode scanners (embedded, fixed-mount, handheld, desktop), OEM engines, PDAs, and Barcode Printers.

Q3. What is your R&D capability? Do you support custom development?

A:We have strong R&D capabilities and are always innovating scanning hardware according to market trends. We support research and development based on your ideas and advice.

Q4. Do you provide OEM/ODM services?

A:Yes, we offer comprehensive manufacturing partnerships, transforming your concepts into market-ready products with industry-leading quality and efficiency.

Q5. What about the quality of your products? Are they certified?

A:We implement the strictest quality control and have obtained CE, FCC, RoHS, and other certifications to ensure excellent product quality.

Q6. What after-sales services do you provide?

A:We offer full-lifecycle support, including expert guidance and free software updates, providing you with complete peace of mind.
